High-Quality MESH Deployment Camera Manufacturer, Manufacturers

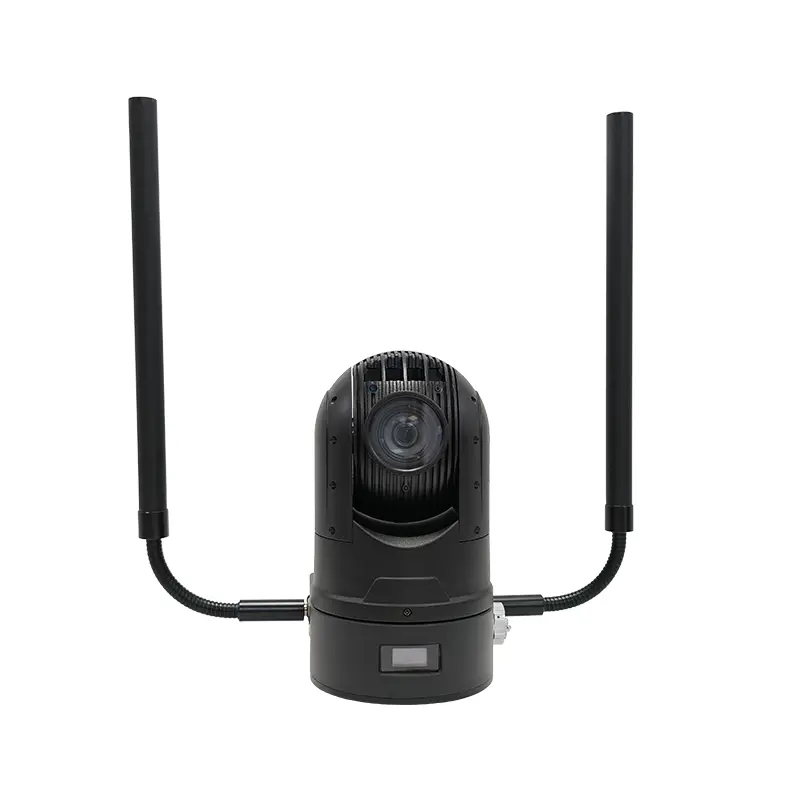

MESH mobile deployment camera integrates high-definition camera and broadband mesh network module to realize video surveillance, mobile deployment and control, and long-distance wireless transmission of mesh network.

Product Description

Key Features
Mesh Network Built-in high-performance wireless broadband mesh network module, with optional 4G public network, WIFI AP, and RJ45 interfaces.
GB-28181 Protocol Support Integrate with command centers to schedule equipment images, configure parameter settings, adjust operations, and use two-way intercom.
HD Waterproof Camera Equipped with progressive scan CMOS sensor, high-performance multimedia processor, and embedded Linux system.
H.265 & Dual Stream Advanced H.265 video encoding supporting dual stream with resolutions of 1920×1080 / 1280*720 at 25fps/30fps.
360° PTZ with 30X Zoom 360° horizontal / -15°~90° vertical rotation. 30X/20X optical & 20X digital zoom, featuring auto-focus, anti-shake, and 3D noise reduction.
Laser Fill Light & Ranging Features active laser ranging, 1km night laser fill light, with optional navigation pointing and bird repelling functions.
Ultra-Long Range Vision Provides 2 to 10 kilometers of visibility, integrated with optical and electronic defogging for clear daytime monitoring.
Day/Night Conversion Equipped with automatic ICR infrared filter conversion and an infrared distance range of 60-80 meters.
High Sensitivity & Defog Supports fog penetration and backlight compensation. Min illumination: Color 0.05Lux@ (F1.6, AGCON), B/W: 0.01Lux@ (F1.6, AGCON).
Internal Storage Features an integrated 128G micro SD card slot for secure local data recording and storage.
One-Click Boot Instantly operational with a simple one-click start. Zero complex parameter configurations required for deployment.
Strong Battery Life High-capacity 10.4Ah/12V battery providing up to 8 hours of runtime, with efficient consumption (<30W) and external mains compatibility.
All-Weather Protection IP66-rated three protection grade, running in temperatures from -40°C to +80°C. Dimensions: 260x167mm, Weight: 4.5kg.

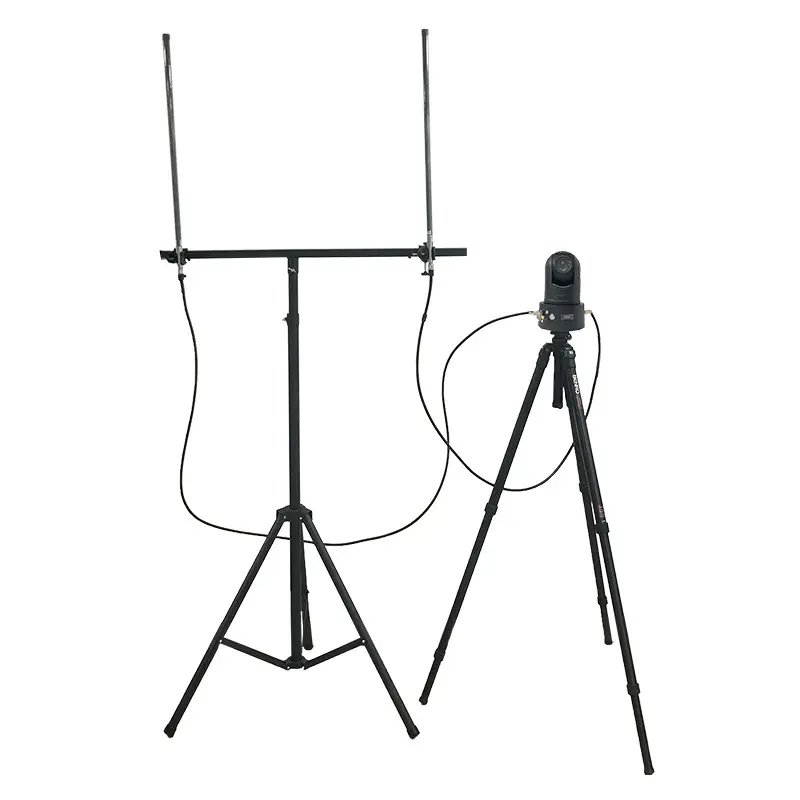

Standard Spare Parts Comes complete with a tripod, charger, composite aviation cable, main antenna, WIFI antenna, and custom packaging box.
Frequently Asked Questions
What type of network connectivity does the device support?
The camera system is equipped with an integrated high-performance wireless broadband mesh network module. It also offers versatile network interfaces, supporting 4G public network, WIFI AP, and standard RJ45 connections to ensure reliable data transmission in various environments.
How long is the battery runtime, and can it be powered continuously?
The system features a 10.4Ah/12V battery that delivers up to 8 hours of battery life with an average energy consumption of less than 30 watts. For permanent setups, it can be continuously powered through external mains power.
What are the camera's rotation and magnification capabilities?
The camera supports full 360° horizontal rotation and a vertical range of -15° to 90°. It features up to 30X or 20X optical zoom along with 20X digital zoom, ensuring detailed remote tracking. It also supports 256 preset points, auto focus, anti-shake, and 3D noise reduction.
Is the camera robust enough for extreme outdoor conditions?
Yes. The system is designed to withstand extreme environments, holding an IP66 three protection grade. It operates stably within a wide temperature range of -40°C to +80°C, making it ideal for harsh industrial and outdoor monitoring tasks.
Can the camera monitor objects during low light or foggy conditions?
Absolutely. The camera offers Day and Night ICR filter auto-conversion with a 60-80m infrared distance, active laser ranging, and a 1km night laser fill light. Furthermore, during daytime operations, it supports optical and electronic defogging to penetrate dense fog and extend visual ranges up to 2-10 kilometers.
How easy is the setup, and does it support remote management platforms?
The system features an easy "one-click boot" system that works straight out of the box with no complex parameters to adjust. It also supports seamless integration with standard GB-28181 video management platforms, enabling remote centers to control parameters, manage the PTZ system, view live feeds, and use two-way intercom features.
