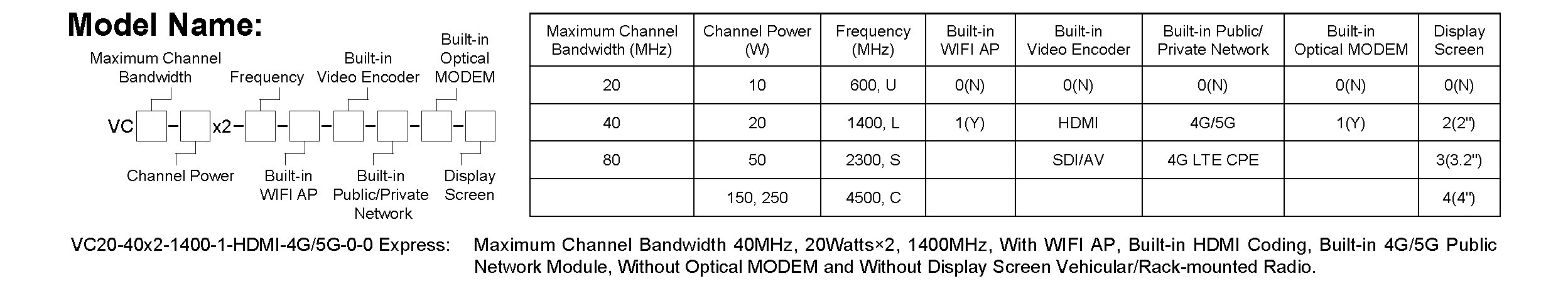

| General Specifications | |
| SDR Platform, Waveform | AD936X+FPGA (7Z020, 7Z030, 7Z035, 7Z100), Mobile network MANET+MIMO |
| MIMO Technology | Space-time coding, Receive Diversity, TX /RX beamforming, Spatial multiplexing |
| Receive Sensitivity | -103dBm@5MHz BW |
| Channel Bandwidth | 1.25/2.5/5/10/20MHz (7Z020, 7Z030)/40MHz (7Z035)/80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable |
| Data Rate | 1-70Mbps (20MHz BW, 7Z020)/1-130Mbps (20MHz BW, beamforming by 7Z030)/1-252Mbps (40MHz BW, 7Z035)/1-350Mbps (80MHz BW, 7Z100) Adaptive, QoS |
| Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional) |
| RF Output Power |
10Watts × 2 / 20Watts × 2 40Watts × 2 / 50Watts × 2 150Watts × 2 / 250Watts × 2 (Customization) (Support TPC, transmission power control, 1dBm adjustable) |
| Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing, Multi-hop relay, Star/Line/Network/Hybrid |
| Single Hop Delay | Average 6ms (Unidirectional, 20MHz BW) |
| Encryption | DES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine) |
| Anti-Jamming Mode | Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting (spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
| Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional. |
| Performance Margins |
Startup time < 28 seconds; network access/update/switchover time < 1 second. No limit on the user capacity of a single system (256 nodes or more) and MESH hops (Data 15+ hops, voice 10+ hops, video 8+ hops). Total bandwidth loss for 3+ hops is < 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 km/h (6 Mach, 2000 m/s). |
| Bands (70M-6GHz/Upper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band or 1T2R at dual-band) | |
| VHF/UHF (MHz) | 360-450/450-550/570-700/800-950, 225-400/225-678/320-470* |
| L Band (GHz) | 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5* |
| S Band (GHz) | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6* |
| C Band (GHz) | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* (Note: RF power, Dimensions, Weight vary accordingly) |
| MIIT (MHz) | 336-344/512-592/566-626/606-678/1420-1520/1430-1444 |
| Environmental Specifications | |
| Operation Temperature | -40°C ~ +80°C |
| Protection Level | IP66 (IP67/IP68 Customized) |
| Mechanical Specifications | |
| Size/Weight Options |

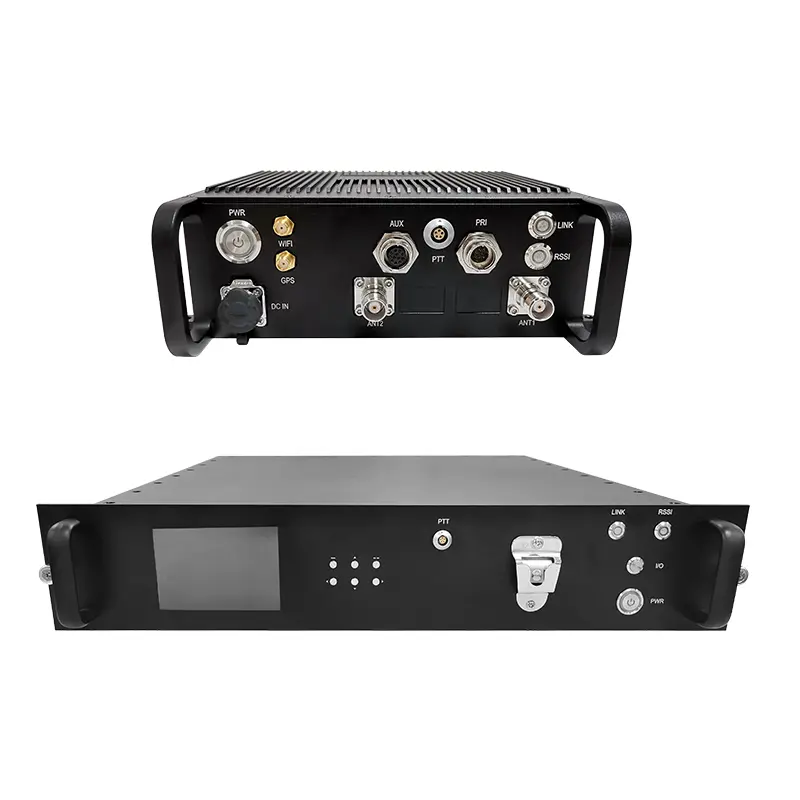

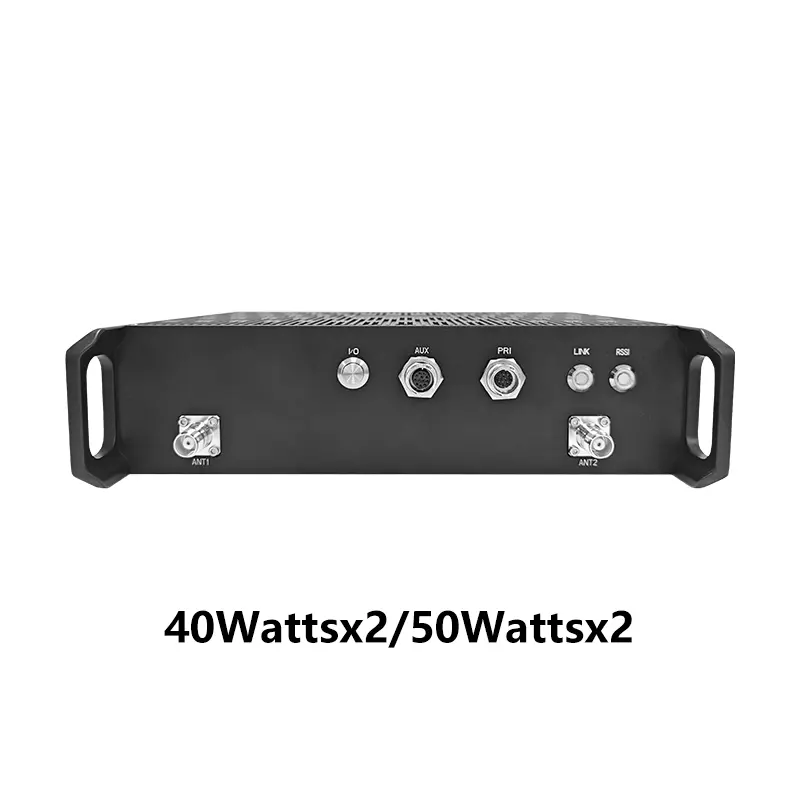

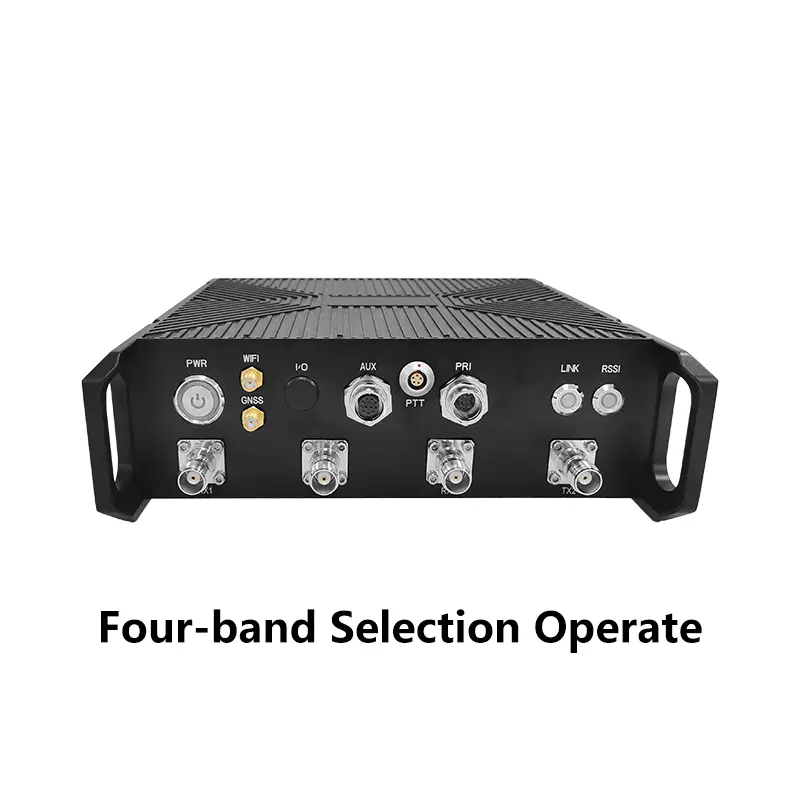

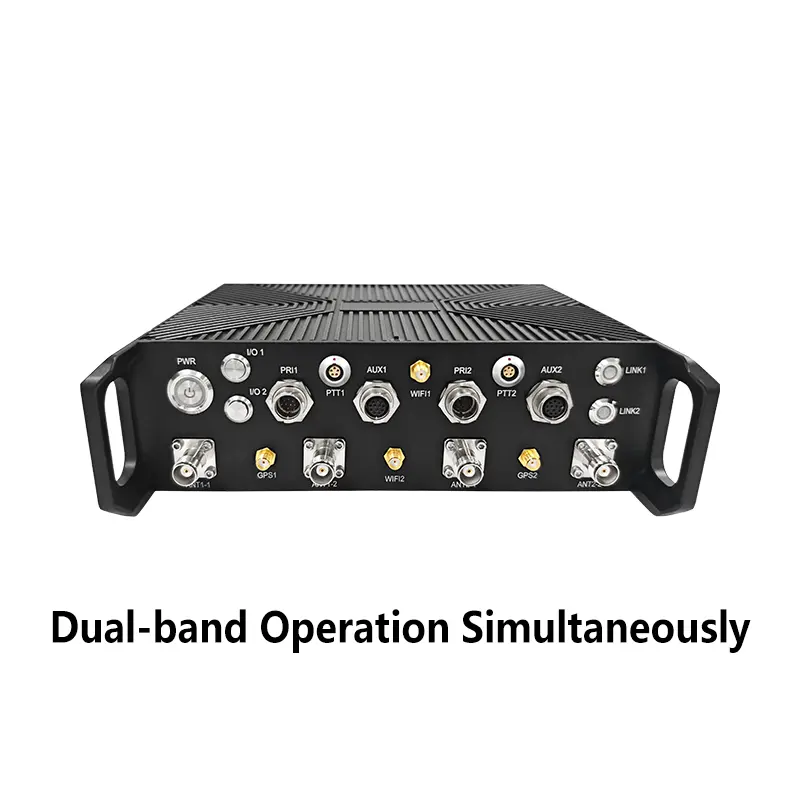

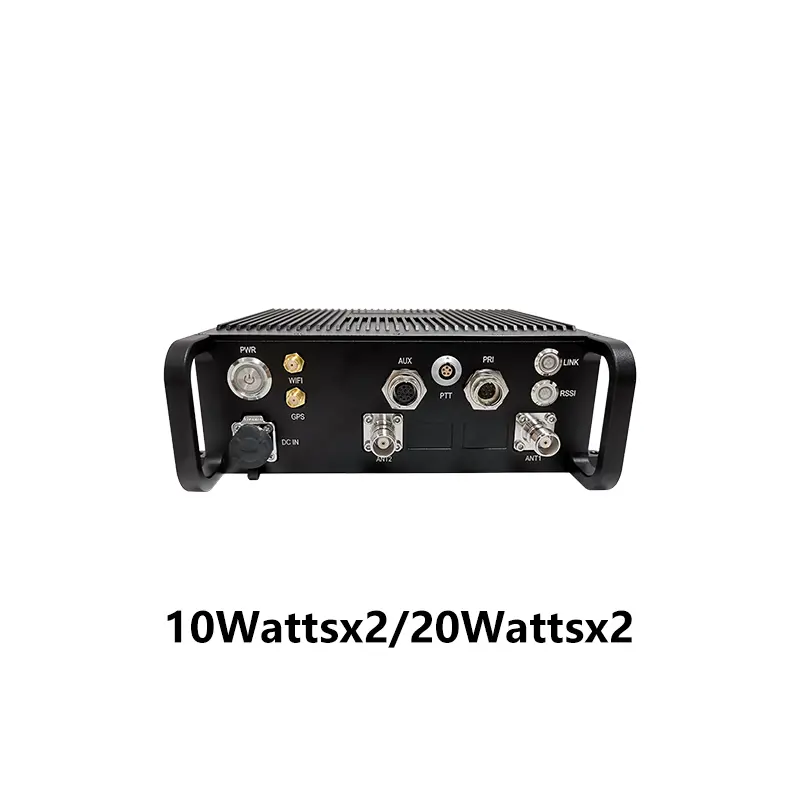

19.1x18.6x6.3cm / 2.16kg (10Watts × 2 / 20Watts × 2) 25.8x21.3x6.5cm / 3.95kg (50Watts × 2) 19.0x23.0x6.5cm / 3.0kg (Dual-band Operation Simultaneously) 22.1x21.1x6.3cm / 2.16kg (Four-band Selection Operate) 48.2x42.0x4.5cm / 3.9kg (19'' 1U Standard Rack Radio) 48.2x42.0x8.8cm / 5.9kg (19'' 2U Display Screen Standard Rack Radio) |
| Color | Black (Iron Gray, Army Green optional) |
| Installation | 4 Mounting Holes, Ears |
| Power Specifications | |
| Supply Voltage |
18-32V DC (10Watts × 2 / 20Watts × 2) 28-32V DC (40Watts × 2 / 50Watts × 2) |
| Power Consumption |
Operation 3-6A / Standby 0.7-0.9A @ 24V (10Watts × 2) Operation 6-7A / Standby 0.7-0.9A @ 24V (20Watts × 2) Operation 22A / Standby 0.4-1.6A @ 28-32V (40Watts × 2) Operation 30A / Standby 0.5-1.7A @ 28-32V (50Watts × 2) |
| Power Selection | Power Supply by Main Cable |
| Interfaces & Connectivity | |
| Basic Interface | 2xTNC/2xN RF, 1-2xRJ45 Ethernet 100/1000BaseT, RS232, Wi-Fi AP, DC input. BD/GPS (GNSS), TTL (UART)/SBUS/Bluetooth 1.2-230.4Kbps available. Supports transparent transmission over Ethernet and serial ports, and all communication protocols, including MAVLink. Selectable service priority. |
| PTT / Auxiliary | MIC, SPK, PTT, GND / 1xRS232, TTL, SBUS |
| Network Extensions (Optional) | Public Network Routing / 4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extensions (Optional) | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator |
● Steady red - The network is not connected ◌ Blinking red - Starting / not connected to the network ● Steady green - The network is connected |
| RSSI Link Indicator |
● Steady green - Excellent quality link ● Steady blue - Good quality link ● Steady yellow - Medium quality link ● Steady purple - Slightly worse quality link ● Steady red - Poor link or down ○ Off - Link is interrupted |
| Management / Control | Web-based network management/GUI, API for secondary development interface/SNMP |
