| Parameter | Specification Details |
|---|---|
| General Specifications | |
| SDR Platform & Waveform | AD936X+FPGA (7Z020, 7Z030, 7Z035, 7Z100), Mobile network MANET+MIMO |
| MIMO Technology | Space-time coding, Receive Diversity, TX/RX beamforming, Spatial multiplexing |
| Receive Sensitivity | -103dBm @ 5MHz BW |
| Channel Bandwidth | 1.25 / 2.5 / 5 / 10 / 20MHz (7Z020, 7Z030) / 40MHz (7Z035) / 80MHz (7Z100, 40MHz+40MHz dual antenna carrier aggregation), configurable |
| Data Rate | 1-70Mbps (20MHz BW, 7Z020) / 1-130Mbps (20MHz BW, beamforming by 7Z030) / 1-252Mbps (40MHz BW, 7Z035) / 1-350Mbps (80MHz BW, 7Z100) Adaptive, QoS |
| Modulation Mode | TD-COFDM, BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM Adaptive (Fixed setting optional) |
| RF Output Power | 2 Watts × 2 / 4 Watts × 2 / 5 Watts × 2 (Supports TPC transmit power control, 1dBm adjustable) |
| Network Modes | Distributed centerless Point-to-point / Point-to-multipoint / Multipoint-to-multipoint, Layer 2 or 3 Dynamic routing, Multi-hop relay, Star / Line / Network / Hybrid topologies |
| Single Hop Delay | Average 6ms (Unidirectional, 20MHz BW) |
| Encryption | DES, AES 128/256 (SM4 / SNOW3G / ZUC optional, Chip/TF card encryption customized or external encryption machine) |
| Anti-Jamming Mode | Manual spectrum scanning, Full band enhanced intelligent frequency selection (spectrum awareness), Full band adaptive frequency hopping (FHSS) / Roaming mode, Multi-level anti-interference |
| Local/Remote Management | Configures operating frequency, channel bandwidth, network ID, transmit power. Real-time display of spectrum scanning, network topology, link field strength, signal-to-noise ratio, throughput, node distance, GPS/BD/GLONASS positioning map, temperature, voltage, and jamming monitoring. Supports remote silence and wake-up (optional). |
| Operational Dynamics | Startup time < 28s; network access/update/switchover < 1s. Unlimited system capacity (256+ nodes). Supports 15+ hops for data, 10+ hops for voice, and 8+ hops for video. Bandwidth loss for 3+ hops is < 70%. Automatic carrier tracking (±6kHz offset), supports speeds above Mach 6 (7200 km/h). |
| Supported Frequency Bands (70MHz - 6GHz customizable) | |
| VHF/UHF (MHz) | 360-450 / 450-550 / 570-700 / 800-950, 225-400 / 225-678 / 320-470* |
| L Band (GHz) | 1.0-1.2 / 1.1-1.3 / 1.3-1.5 / 1.5-1.7 / 1.6-1.8, 1.0-1.5 / 1.1-1.6 / 1.2-1.7 / 1.3-1.8 / 1.6-2.3 / 1.7-2.4 / 1.8-2.2* |
| S Band (GHz) | 2.0-2.2 / 2.2-2.4 / 2.3-2.5 / 2.5-2.7 / 2.7-2.9 / 3.2-3.4 / 3.4-3.6 / 3.6-3.8, 1.9-2.7 / 2.0-2.7 / 2.1-2.7 / 2.7-3.6* |
| C Band (GHz) | 4.4-5.0 / 5.25-5.85, 4.2-5.2 / 5.5-6.0 / 6.4-7.2* |
| MIIT (MHz) | 336-344 / 512-592 / 566-626 / 606-678 / 1420-1520 / 1430-1444 |
| Note | RF power, physical dimensions, and weight vary depending on the chosen configuration. |
| Environmental Specifications | |
| Operating Temperature | -40°C to +80°C |
| Protection Rating | IP66 standard (IP67 / IP68 customization available) |
| Mechanical Specifications | |
| Size & Weight Options |
• 19.0 x 6.8 x 3.8 cm / 769g (with 11.1V/77.7Wh battery) • 26.0 x 6.8 x 3.8 cm / 1.04kg (with 11.1V/114Wh battery) • 20.7 x 6.9 x 5.5 cm / 1.30kg (with 11.1V/114Wh battery, 5G Routing) • 21.0 x 6.8 x 5.2 cm / 972g (with 11.1V/77.7Wh battery, Four-band) • 15.5 x 6.6 x 3.2 cm / 430g (bare unit with built-in lithium battery, excluding antenna and clip) |
| Color | Black (Iron Gray and Army Green optional) |
| Installation | 4 Mounting Holes |
| Power Specifications | |
| Supply Voltage | 12-36V DC (Compatible with 2W×2, 4W×2, 5W×2 configurations) |
| Power Consumption |
• Operation: 1-2A / Standby: 0.4-0.6A @ 12V (2 Watts × 2 configuration) • Operation: 2-4A / Standby: 0.5-0.7A @ 12V (4 Watts × 2 / 5 Watts × 2 configurations) |
| Battery Performance |
• 6-8 hours with 77.7Wh polymer lithium battery (Default) • 8-10 hours with 114Wh polymer lithium battery |
| Interfaces & Connections | |
| Basic Interfaces | 2x TNC, 1-2x RJ45 Ethernet (100/1000BaseT), RS232, Wi-Fi AP, DC input. BD/GPS (GNSS), TTL (UART)/SBUS/Bluetooth (1.2-230.4Kbps) available. Supports transparent transmission, MAVLink, and customizable service priority. |
| PTT & Auxiliary | MIC, SPK, PTT, GND / 1x RS232, TTL, SBUS |
| Optional Extensions |

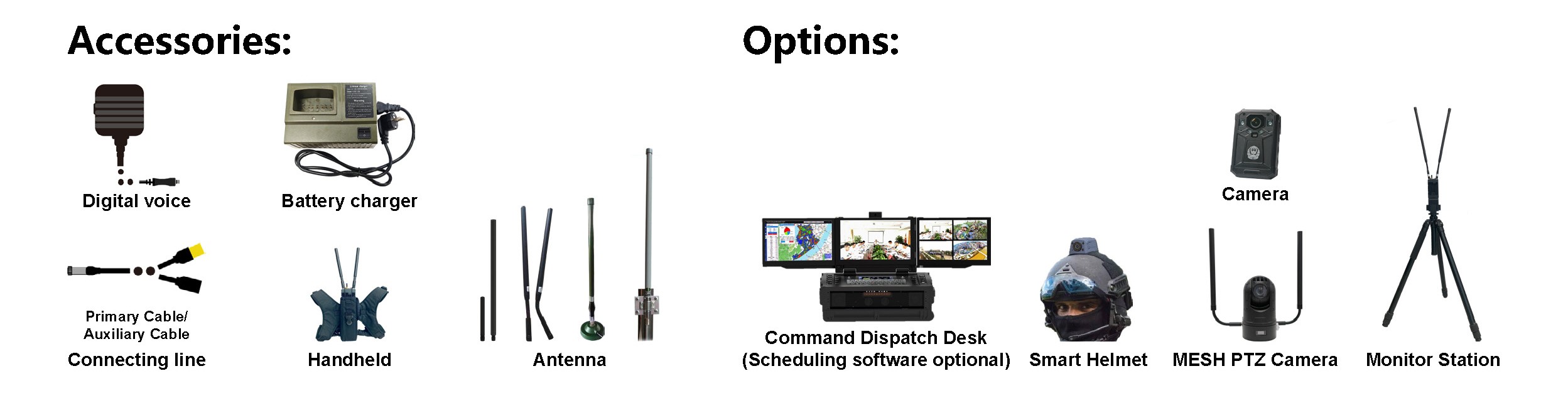

• Network: Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite • Video: Ultra-Low Delay HDMI/SDI/CVBS, supporting 4K/2K/1080P/720P/D1 resolution |
| Link Status Indicators |
• Steady Red: Disconnected • Blinking Red: Booting / Connecting • Steady Green: Connected • Blinking Green: PTT Active |
| RSSI Link Indicators |
• Steady Green: Excellent Link Quality • Steady Blue: Good Link Quality • Steady Yellow: Medium Link Quality • Steady Purple: Low Link Quality • Steady Red: Poor Link / Connection Down • Off: Interrupted |
| Management Options | Web-based local GUI, Remote network management, API support for secondary development, and SNMP. |
The device features a highly resilient mobile MESH network that is self-forming, self-adapting, and self-healing. It supports multi-hop routing, dynamic topology changes, and offers high-speed throughput even in complex environments.
The radio is designed with an automatic carrier tracking system capable of handling Doppler frequency shifts up to ±6kHz. This enables stable communications during high-speed movement on land, water, or air at speeds up to Mach 6 (approx. 7200 km/h).
To combat signal interference, the radio supports manual spectrum scanning, full-band enhanced intelligent frequency selection (spectrum awareness), and full-band adaptive frequency hopping (FHSS) along with standard roaming modes.
Yes, all over-the-air data can be protected using highly secure encryption options, including DES and up to 256-bit AES, as well as customized chip-level or TF card options such as SM4, SNOW3G, and ZUC.
The device is built with a rugged, earthquake-resistant construction designed for extreme deployments. It has an operating temperature range of -40°C to +80°C and holds an IP66 ingress protection rating, customizable up to IP67 or IP68.
It features 2x TNC antenna ports, dual RJ45 Ethernet (100/1000BaseT), RS232, Wi-Fi AP, DC input, and integrated GNSS (BD/GPS). It also supports optional integration with public 4G LTE networks, fiber optic connections, satellite connections, and low-latency HDMI/SDI/CVBS video feeds up to 4K resolution.
