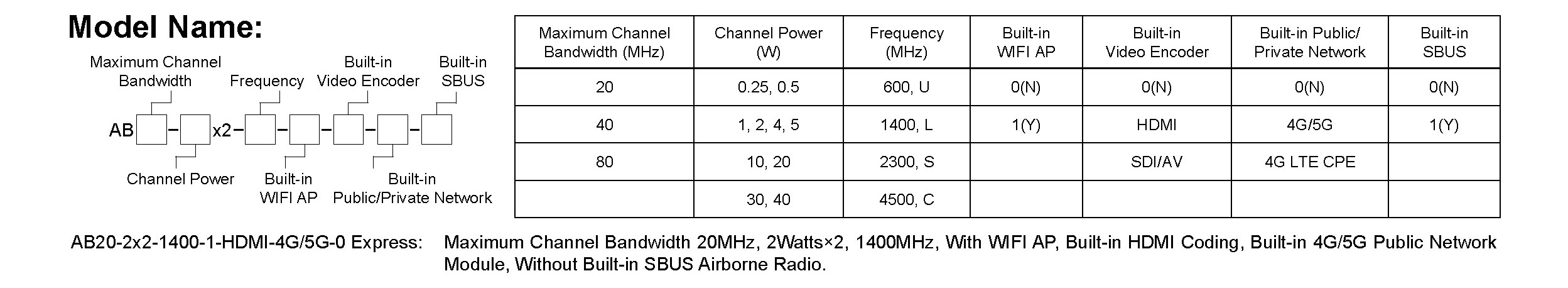

| Airborne Radio Specifications | |
| General | |
| SDR Platform, Waveform | AD936X+FPGA (7Z020, 7Z030, 7Z035, 7Z100), Mobile network MANET+MIMO |
| MIMO Technology | Space-time coding, Receive Diversity, TX/RX beamforming, Spatial multiplexing |
| Receive Sensitivity | -103dBm@5MHz BW |
| Channel Bandwidth | 1.25/2.5/5/10/20MHz (7Z020, 7Z030) / 40MHz (7Z035) / 80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable |
| Data Rate | 1-70Mbps (20MHz BW, 7Z020) / 1-130Mbps (20MHz BW, beamforming by 7Z030) / 1-252Mbps (40MHz BW, 7Z035) / 1-350Mbps (80MHz BW, 7Z100) Adaptive, QoS |
| Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional) |
| RF Output Power (Support TPC, transmission power control, 1dBm adjustable) |
0.25W × 2; 0.5W × 2; 1W × 2; 2W × 2; 4W × 2; 5W × 2; 10W × 2; 20W × 2; 30W × 2; 40W × 2 |
| Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing, Multi-hop relay, Star/Line/Network/Hybrid |
| Single Hop Delay | Average 6ms (Unidirectional, 20MHz BW) |
| Encryption | DES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine) |
| Anti-Jamming Mode | Manual spectrum scanning channel selection / Full band enhanced intelligent frequency selecting (spectrum awareness) / Full band adaptive frequency hopping FHSS / Roaming mode, Multi-level anti-interference |
| Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, BD/GPS (GNSS) positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade (remote silence and wake-up optional) |
| Others |
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second; There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops); The total transmission rate loss for more than three hops is less than 70%; Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
| Bands (70M-6GHz/Upper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band or 1T2R at dual-band) | |
| BAND | Frequency range |
| VHF/UHF (MHz) | 360-450 / 450-550 / 570-700 / 800-950, 225-400 / 225-678 / 320-470* |
| L Band (GHz) | 1.0-1.2 / 1.1-1.3 / 1.3-1.5 / 1.5-1.7 / 1.6-1.8, 1.0-1.5 / 1.1-1.6 / 1.2-1.7 / 1.3-1.8 / 1.6-2.3 / 1.7-2.4 / 1.8-2.5* |
| S Band (GHz) | 2.0-2.2 / 2.2-2.4 / 2.3-2.5 / 2.5-2.7 / 2.7-2.9 / 3.2-3.4 / 3.4-3.6 / 3.6-3.8, 1.9-2.7 / 2.0-2.7 / 2.1-2.7 / 2.7-3.6* |
| C Band (GHz) | 4.4-5.0 / 5.25-5.85, 4.2-5.2 / 5.5-6.0 / 6.4-7.2* (Note: RF power, Dimensions, Weight is different) |
| MIIT (MHz) | 336-344 / 512-592 / 566-626 / 606-678 / 1420-1520 / 1430-1444 |
| Environmental | |
| Operation Temperature | -40°C ~ +80°C |
| Protection Level | IP66 (IP67/IP68 Customized) |
| Mechanical | |
| Size/Weight |

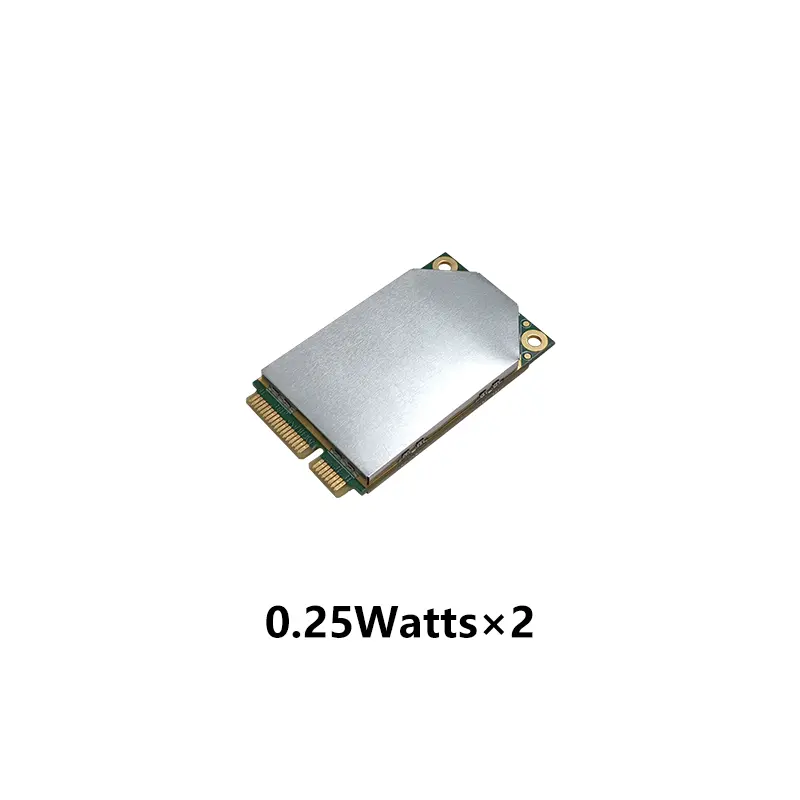

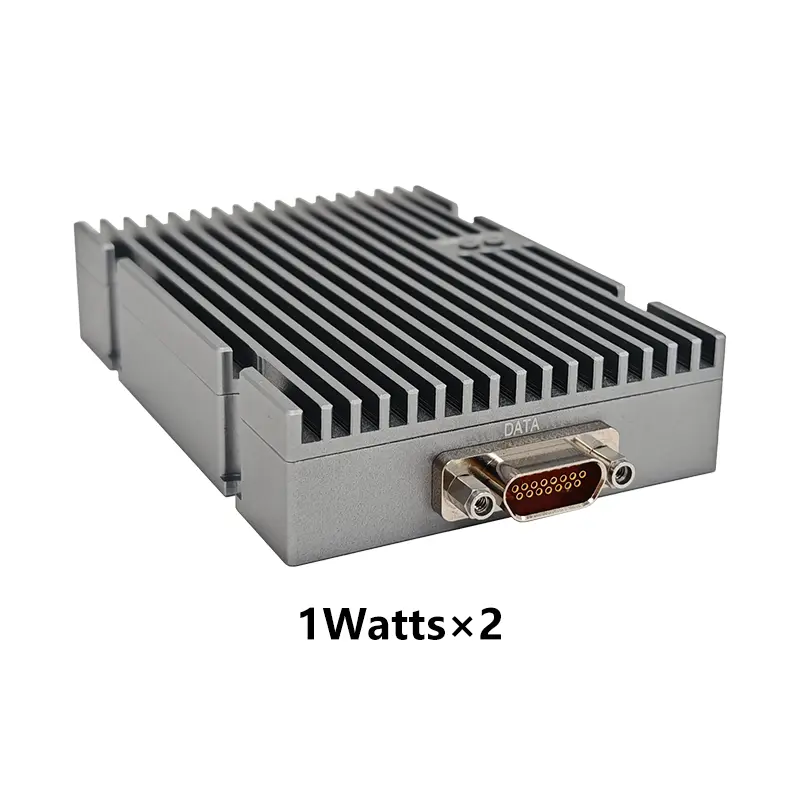

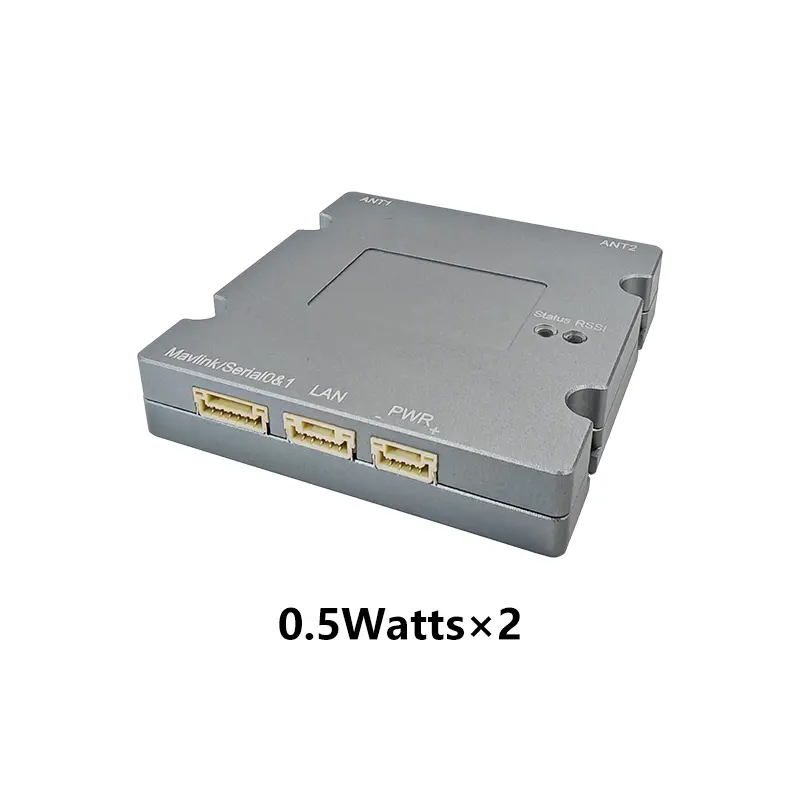

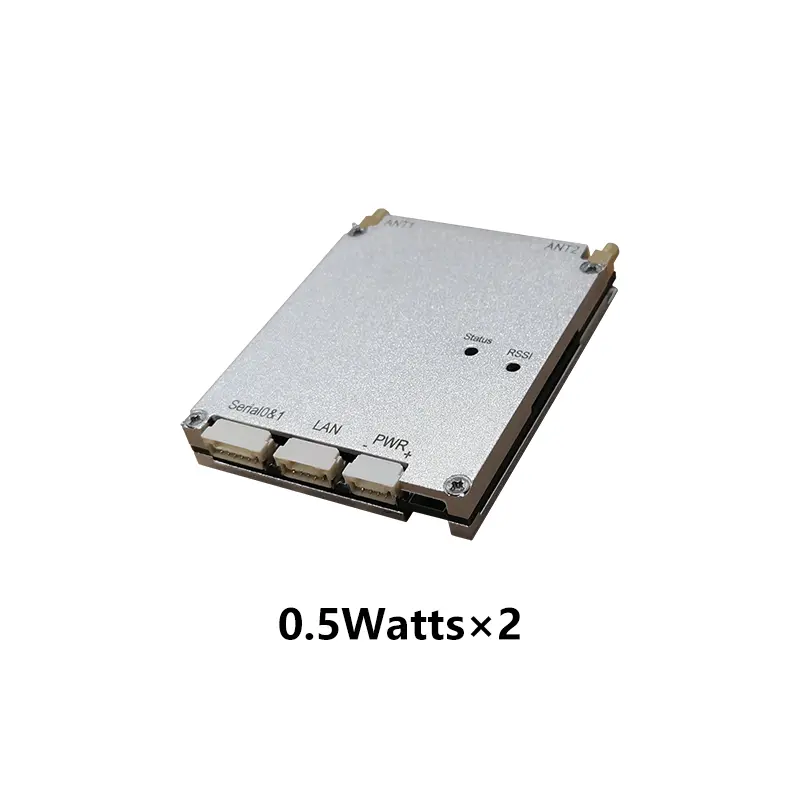

5.1x3.0x0.7cm / 14g, 0.25W × 2 - Iron Gray 6.0x4.8x1.1cm / 46g, 0.5W × 2 - Iron Gray 6.0x5.8x1.3cm / 60g, 0.5W × 2 - Iron Gray 9.6x5.8x1.9cm / 120g, 1W × 2 - Iron Gray 11.7x6.2x2.0cm / 160g, 1W × 2 / 2W × 2 - Iron Gray 11.7x6.2x3.8cm / 349g, 1W × 2 / 2W × 2 - Black 11.7x6.2x4.2cm / 364g, 1W × 2 / 2W × 2 - Multi-interface Black 11.7x6.2x3.8cm / 380g, 2W × 2 / 4W × 2 - Fan Black 11.7x6.2x3.2cm / 287g, 2W × 2 / 4W × 2 / 5W × 2 - Iron Gray 13.8x6.2x2.7cm / 225g, 4W × 2 - Iron Gray 13.8x6.2x3.1cm / 271g, 5W × 2 - Fan Iron Gray 12.8x13.4x3.8cm / 598g, 10W × 2 / 20W × 2 - Iron Gray 14.2x13.7x5.7cm / 1.08kg, 10W × 2 / 20W × 2 - Black 14.2x13.7x6.0cm / 1.11kg, 30W × 2 / 40W × 2 - Dark Gray 23.0x14.8x3.5cm / 1.25kg, 30W × 2 / 40W × 2 - Thin Iron Gray |
| Color | Black, Iron Gray (Army Green Optional) |
| Installation | 4 Mounting Holes |
| Power | |
| Supply Voltage |
3.5-5V DC, 0.25W × 2 9-39V DC, 0.5W × 2 / 1W × 2 12-36V DC, 2W × 2 / 4W × 2 / 5W × 2 18-32V DC, 10W × 2 / 20W × 2 28-32V DC, 30W × 2 / 40W × 2 |
| Power Consumption |
Operation 1-2A / Standby 0.5-1A @3.5-5V, 0.25W × 2 Operation 0.3-0.5A / Standby 0.2-0.3A @12V, 0.5W × 2 Operation 1-2A / Standby 0.5-0.7A @12V, 1W × 2 / 2W × 2 Operation 2-4A / Standby 0.5-0.7A @12V, 4W × 2 / 5W × 2 Operation 3-6A / Standby 0.7-0.9A @18V, 10W × 2 Operation 6-10A / Standby 0.7-0.9A @20V, 20W × 2 Operation 22A / Standby 0.4-1.6A @28-32V, 30W × 2 / 40W × 2 |

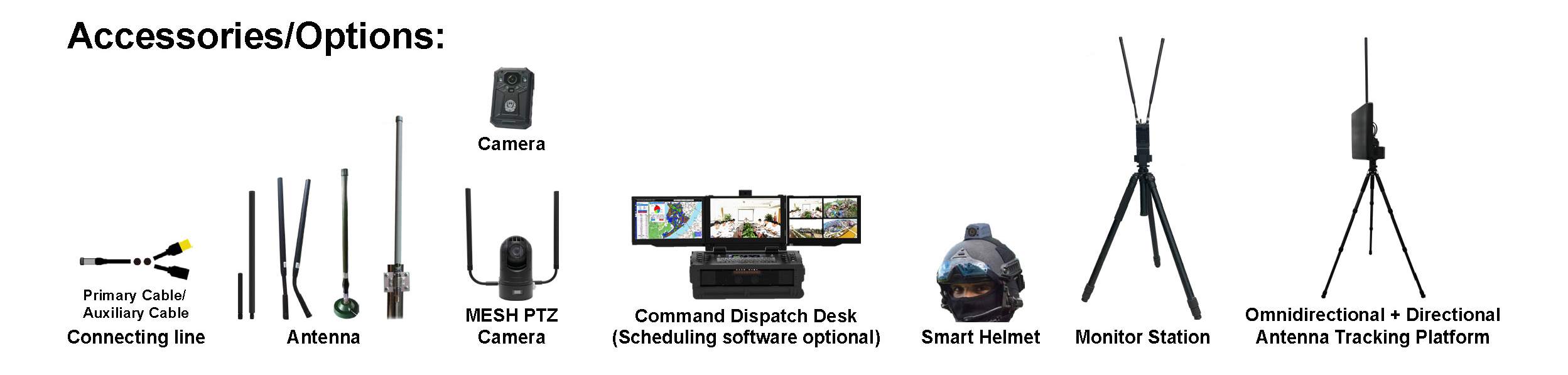

| Power Selection | Power Supply by Main Cable |
| Interface | |
| Basic Interface | 2xIPEX / 2xMMCX / 2xSMP / 2xSMA RF, 1-2xRJ45 Ethernet 100/1000BaseT, RS232, DC input. TTL (UART)/SBUS/Bluetooth 1.2-230.4Kbps, WIFI AP, BD/GPS (GNSS) optional. Supports transparent transmission via Ethernet and serial ports, and supports all communication protocols, including MAVLink. Service priority can be selected |
| Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Power Indicator | Steady green - Powered on |
| Link Status Indicator |
Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected |
| RSSI Link Indicator |
Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down Off - The link is interrupted |
| Management/Control Interface | Web-based network management/GUI, API for secondary development interface/SNMP |
The MESH network is self-forming, self-adapting, and self-healing. It ensures high-speed throughput and dynamic routing even in complex, non-visual urban settings and jungle multi-path transmission terrains, keeping ground, water, and air assets reliably connected.
Yes, data transmitted over the air can be fully encrypted using up to 256-bit AES or DES. It also supports optional SM4, SNOW3G, or ZUC encryption with customized chip or TF card options and external encryption machines.
It supports a wide customized range from 70MHz to 6GHz (including VHF/UHF, L, S, C bands, and MIIT frequencies). It is capable of same-frequency or different-frequency TDD, 2T2R at single band, or 1T2R at dual-band.
The platform features automatic carrier tracking adapted to a Doppler frequency deviation of ±6kHz frequency offset. This allows the system to support stable mobile communication at speeds exceeding Mach 6 (over 7,200 km/h).
It features a rugged, earthquake-resistant construction with an IP66 protection level (customizable to IP67/IP68) and operates flawlessly across an industrial temperature range of -40°C to +80°C.
Standard connections include Ethernet (RJ45), RS232, TTL (UART), SBUS, and Bluetooth, supporting transparent transmission and protocols like MAVLink. Optional network extensions include 4G LTE, Fiber, and Satellite, alongside video extensions for low-delay HDMI, SDI, or CVBS up to 4K resolution.
