Custom Data Radio: MIMOmesh Wireless Mesh/Data Link-Abundant OEM/ODM Module Series Manufacturers, Suppliers

Beamforming/Space Diversity/Spatial Multiplexing, Reach More Than Twice Range and Data Rate
Intelligent Anti-Jamming by Smart Frequency Selection, Adaptive Frequency Hopping
Wide Range Bands, Dual Band Selection, Free To Choose Different Working Frequency Band, Adapt To Complex Terrain Environment And Electromagnetic Environment

Send Inquiry

Product Description

Product Overview & Key Features

Performance Capability

Advanced MESH network architecture: self-forming, self-adapting, and self-healing for high-speed throughput.
Robust non-visual urban construction and jungle multi-path transmission terrain support.
Reliable high-speed mobility connections across ground, water, and air platforms.
Flexible antenna settings with omnidirectional, high-gain orientation, or mixed modes.
Full support for GPS/BD systems and multicast workflows.

Network Performance

Self-organizing, self-healing mobile Mesh networks with dynamic topology & multi-hop routing.
Ultra-Reliable Low Delay Channel for optimized command and control (URLLC).
Intelligent optimization of video streaming media channels over a unified wireless link.
End-to-end clean IP architecture supporting both unicast and multicast traffic natively.
Military-grade security over-the-air with optional up to 256-bit AES encryption.
Leverages highly advanced, scalable SDR Communication platforms with embedded APIs.

Deployment & Design

Optimized SWaP-C profile: Small Size, Light Weight, Low Power, and Low Cost for mobile nodes.
Standard Ethernet and UART interfaces engineered for fast integration into custom systems.
Ruggedized earthquake-resistant architecture built for extreme industrial temperature conditions.

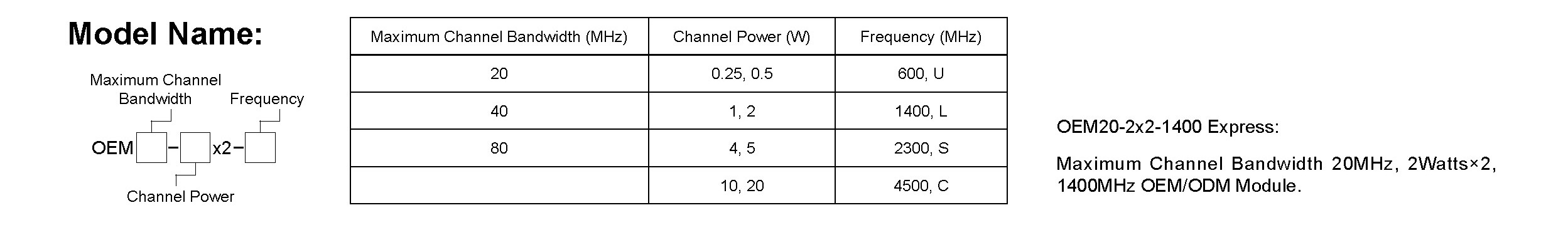

OEM Module Specifications

GENERAL PARAMETERS
SDR Platform, Waveform	AD936X+FPGA (7Z020 / 7Z030 / 7Z035 / 7Z100), Mobile network MANET+MIMO
MIMO Technology	Space-time coding, Receive Diversity, TX/RX beamforming, Spatial multiplexing
Receive Sensitivity	-103dBm @ 5MHz BW
Channel Bandwidth	1.25/2.5/5/10/20MHz (7Z020, 7Z030) / 40MHz (7Z035) / 80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable
Data Rate	1-70Mbps (20MHz BW, 7Z020) / 1-130Mbps (20MHz BW, beamforming by 7Z030) / 1-252Mbps (40MHz BW, 7Z035) / 1-350Mbps (80MHz BW, 7Z100) Adaptive, QoS
Modulation Mode	TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional)
RF Output Power	Supports TPC (Transmission Power Control, 1dBm adjustable) 0.25W × 2; 0.5W × 2; 1W × 2; 2W × 2; 4W × 2; 5W × 2; 10W × 2; 20W × 2
Mode	Distributed centerless Point-to-point / Point-to-multipoint / Multipoint-to-multipoint, Layer 2 or 3 Dynamic routing, Multi-hop relay, Star/Line/Network/Hybrid structures
Single Hop Delay	Average 6ms (Unidirectional, 20MHz BW)
Encryption	DES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine)
Anti-Jamming Mode	Manual spectrum scanning channel selection / Full band enhanced intelligent frequency selecting (spectrum awareness) / Full band adaptive frequency hopping FHSS / Roaming mode, Multi-level anti-interference
Local/Remote Management	Operating frequency, channel bandwidth, network ID, transmit power parameters, spectrum scanning, real-time topology display, link strength & SNR, traffic stats, node distance, GPS/BD/GLONASS mapping, temperature/voltage monitoring, remote silence & wake-up optional.
Startup & Capabilities	Startup time < 28s; Network access/switchover < 1s. No user limit (256+ nodes), support for 15+ data hops, 10+ voice hops, 8+ video hops. Supports mobility speeds > 7200 km/h (Mach 6) with auto carrier tracking.
FREQUENCY BANDS & SUPPORT
70MHz - 6GHz (Custom bands / TDD 2T2R single-band or 1T2R dual-band customizable)
VHF/UHF (MHz)	360-450 / 450-550 / 570-700 / 800-950, 225-400 / 225-678 / 320-470*
L Band (GHz)	1.0-1.2 / 1.1-1.3 / 1.3-1.5 / 1.5-1.7 / 1.6-1.8, 1.0-1.5 / 1.1-1.6 / 1.2-1.7 / 1.3-1.8 / 1.6-2.3 / 1.7-2.4 / 1.8-2.5*
S Band (GHz)	2.0-2.2 / 2.2-2.4 / 2.3-2.5 / 2.5-2.7 / 2.7-2.9 / 3.2-3.4 / 3.4-3.6 / 3.6-3.8, 1.9-2.7 / 2.0-2.7 / 2.1-2.7 / 2.7-3.6*
C Band (GHz)	4.4-5.0 / 5.25-5.85, 4.2-5.2 / 5.5-6.0 / 6.4-7.2*
MIIT (MHz)	336-344 / 512-592 / 566-626 / 606-678 / 1420-1520 / 1430-1444 *(Note: RF power, dimensions, and weights may vary accordingly)
ENVIRONMENTAL & PHYSICAL
Operating Temperature	-40°C to +80°C
Protection Level	N/A (OEM Integrated Module)

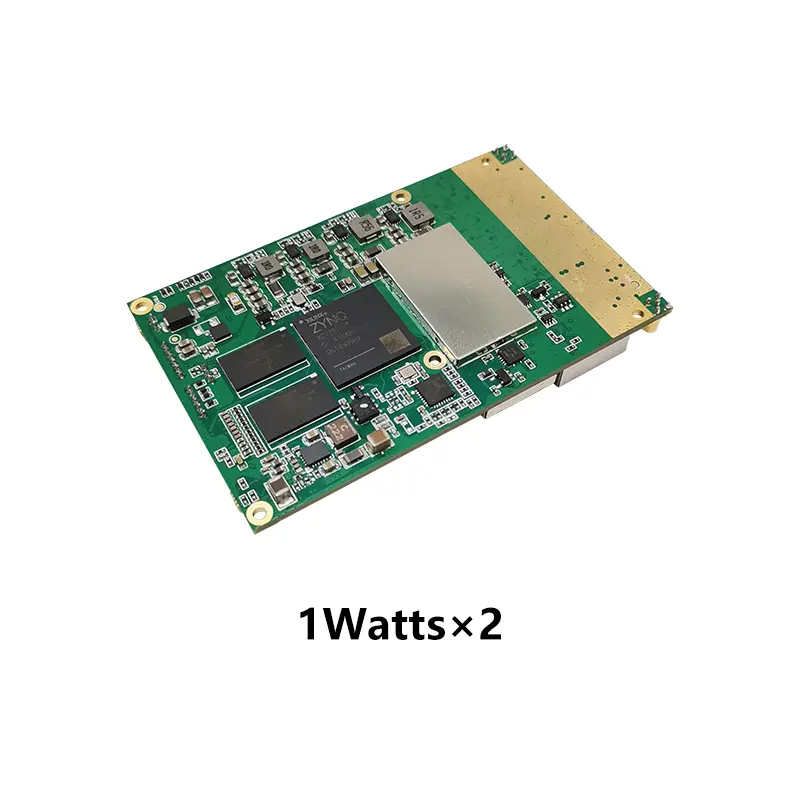

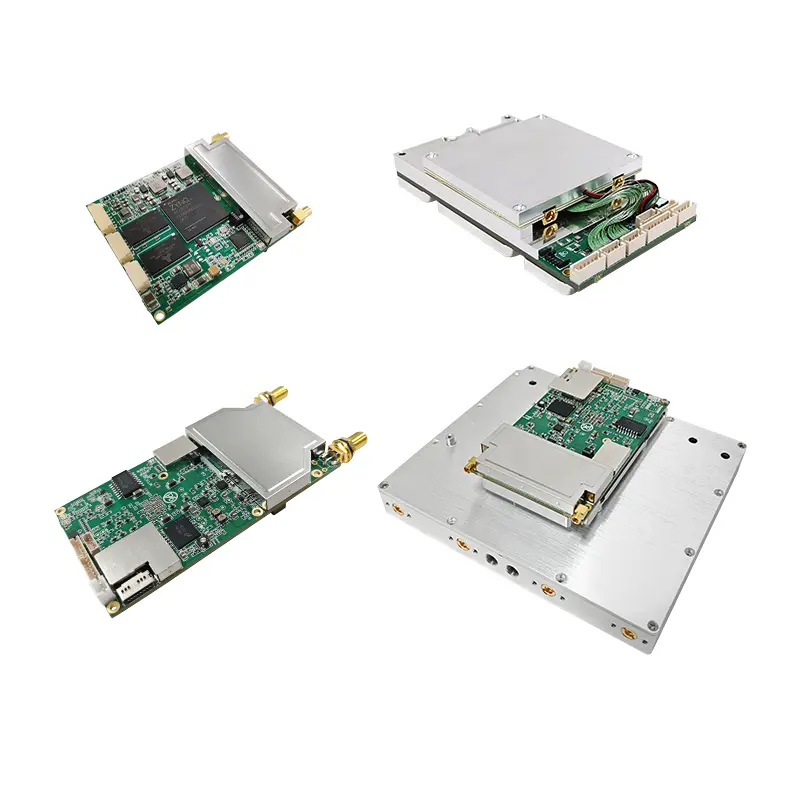

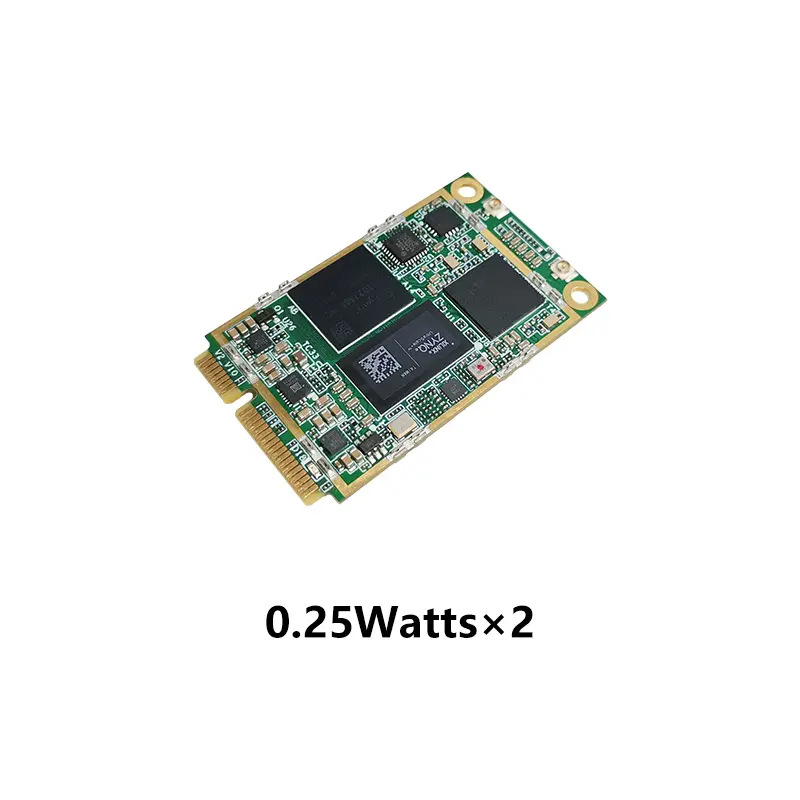

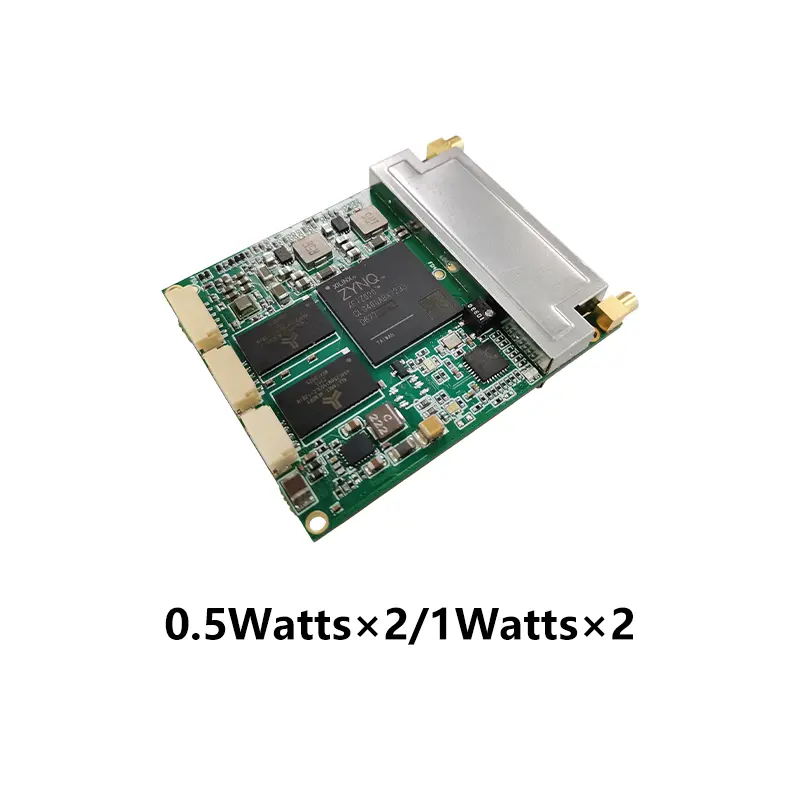

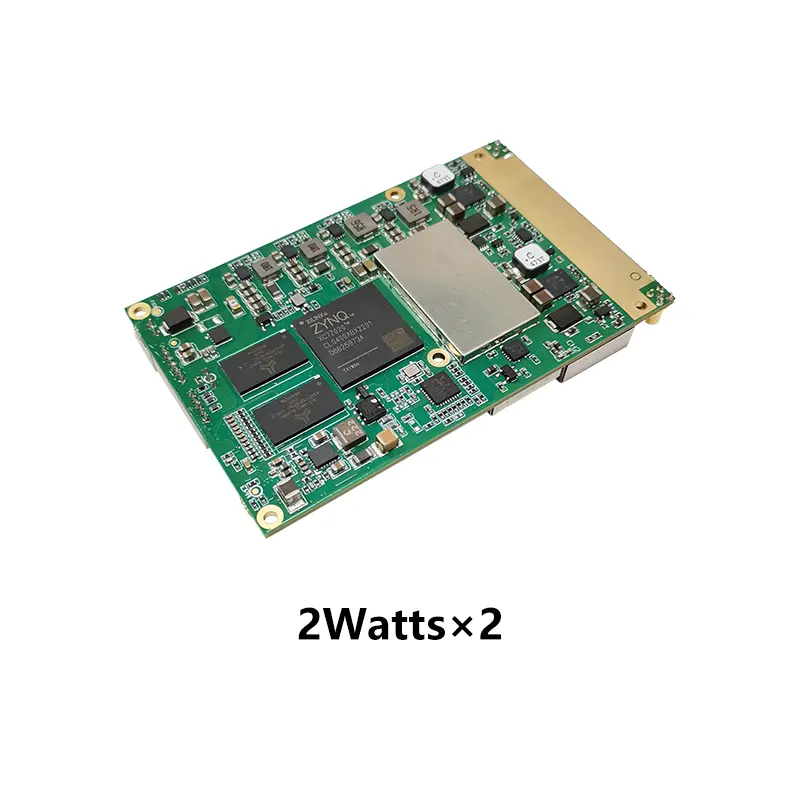

Dimensions & Weights	• 5.1x3.0x0.6 cm / 11g (0.25W × 2) • 5.8x4.8x1.0 cm / 27g (0.5W × 2 / 1W × 2) • 8.7x5.4x1.0 cm / 40g (1W × 2) / 43g (2W × 2) • 11.5x5.4x1.3 cm / 56g (4W × 2 / 5W × 2) • 10.1x5.4x1.9 cm / 124g (2W/4W/5W × 2) / 127g (2W/4W × 2) • 12.7x11.0x3.4 cm / 524g (10W/20W × 2) • 12.7x11.0x3.6 cm / 575g or 600g (10W/20W × 2)
Installation Configuration	4 x Standard Mounting Holes
POWER SPECIFICATIONS
Supply Voltage	• 3.5 - 5V DC (for 0.25W × 2) • 9 - 39V DC (for 0.5W × 2 / 1W × 2) • 12 - 36V DC (for 2W × 2 / 4W × 2 / 5W × 2) • 18 - 32V DC (for 10W × 2 / 20W × 2)
Power Consumption	• Active: 1-2A / Standby: 0.5-1A @ 3.5-5V (0.25W × 2) • Active: 0.3-0.5A / Standby: 0.2-0.3A @ 12V (0.5W × 2) • Active: 1-2A / Standby: 0.5-0.7A @ 12V (1W × 2 / 2W × 2) • Active: 2-4A / Standby: 0.5-0.7A @ 12V (4W × 2 / 5W × 2) • Active: 3-6A / Standby: 0.7-0.9A @ 18V (10W × 2) • Active: 6-10A / Standby: 0.7-0.9A @ 20V (20W × 2)
INTERFACES & INDICATORS
Basic Interfaces	2x IPEX/MMCX/SMP/SMA RF, 1-2x RJ45 Fast/Gigabit Ethernet, RS232, DC Input. TTL(UART), SBUS, Bluetooth, Wi-Fi AP, and BD/GPS (GNSS) options. Transparent Ethernet/serial transmission, MAVLink support with customizable QoS service priority.
Network & Video Extension	Network: Public Network Routing / 4G LTE, WB-NB integration, Fiber, Satellite. Video: HDMI/SDI/CVBS with low latency supporting 4K, 2K, 1080P, 720P, D1.
Status Indicators	Power: Solid Green (Powered On) Link: Solid Red (Disconnected) \| Blinking Red (Initializing) \| Solid Green (Connected) RSSI Link Strength: Green (Excellent) \| Blue (Good) \| Yellow (Medium) \| Purple (Fair) \| Red (Poor) \| Off (Interrupted)
Management & APIs	Web GUI management, customizable API for secondary software development, and SNMP support.

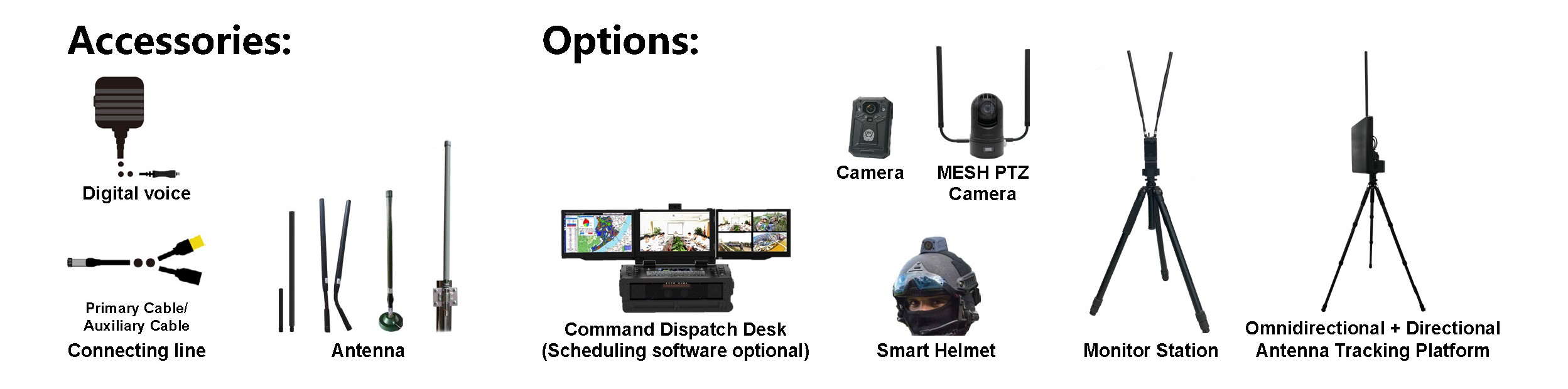

Product Gallery

Frequently Asked Questions (FAQ)

What is a Mobile MESH network and its advantages?

A Mobile MESH (MANET) network is a self-forming, self-adapting, and self-healing network topology. It utilizes dynamic multi-hop routing, allowing nodes to dynamically join or leave without interrupting the network traffic. This is ideal for complex, non-line-of-sight environments such as urban constructions, jungles, and high-speed terrestrial or aerial scenarios.

What level of latency can I expect from this OEM module?

The module offers an Ultra-Reliable Low Delay Channel (URLLC) for command and control systems, achieving an impressive unidirectional single-hop average delay of only 6ms at 20MHz bandwidth.

Does this system support high-speed mobile communications?

Yes. Built with advanced automatic carrier tracking, the system adapts to a Doppler frequency deviation of ±6kHz frequency offset. This ensures solid mobile connection capabilities at speeds exceeding 7200 kilometers per hour (Mach 6).

What kind of encryption is supported for data security?

Data transmitted over the air can be secured using industry-standard DES or up to 256-bit AES encryption. For specialty applications, customized chip/TF card encryption or integration with external encryption devices is supported.

What interfaces are available for custom system integration?

The module includes basic RF ports (IPEX/MMCX/SMP/SMA), 1-2x RJ45 Ethernet ports, RS232, DC input, TTL (UART), SBUS, and Bluetooth support. It also features optional video extensions (HDMI/SDI/CVBS) and network extensions such as 4G LTE and Satellite.

What range of frequency bands does the module support?

The platform features a highly customizable SDR architecture covering bands from 70MHz up to 6GHz. Supported channels include standard VHF/UHF, L Band, S Band, C Band, and MIIT configurations, operating in either TDD 2T2R single-band or 1T2R dual-band configurations.
