Beamforming/Space Diversity/Spatial Multiplexing, Reach More Than Twice Range and Data Rate
Intelligent Anti-Jamming by Smart Frequency Selection, Adaptive Frequency Hopping
Wide Range Bands, Dual Band Selection, Free To Choose Different Working Frequency Band, Adapt To Complex Terrain Environment And Electromagnetic Environment

Send Inquiry

Product Description

🚀 Key Performance Features
  • MESH network (self-forming, self-adapting, self-healing)
  • High-speed throughput with low latency
  • Effective connection in non-visual urban and jungle terrains
  • Ground, water, and air high-speed movement support
  • Multiple antenna settings (Omnidirectional/High gain)
  • GPS/BD and Multicast Support
  • Ultra-Reliable Low Delay Channel (URLLC)
  • Advanced 256-bit AES data encryption
📊 Technical Specifications
Outdoor Radio Parameters
General Information
SDR Platform & Waveform AD936X+FPGA (7Z020/7Z030/7Z035/7Z100), Mobile MANET+MIMO
MIMO Technology Space-time coding, Receive Diversity, TX/RX beamforming, Spatial multiplexing
Channel Bandwidth 1.25/2.5/5/10/20MHz/40MHz/80MHz (Configurable)
Data Rate 1-350Mbps (Adaptive, QoS support)
Modulation Mode TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive

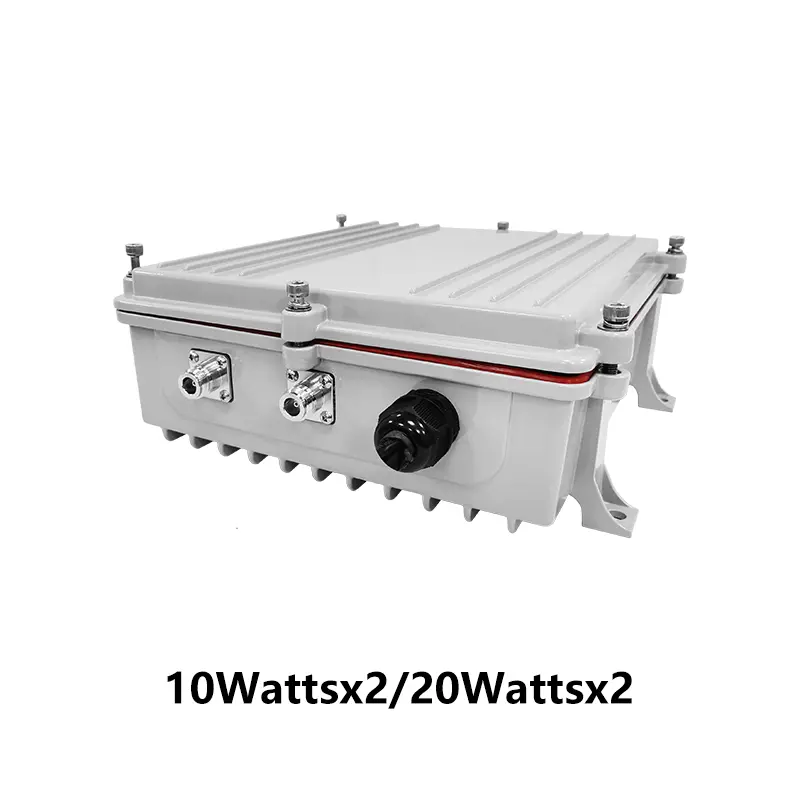

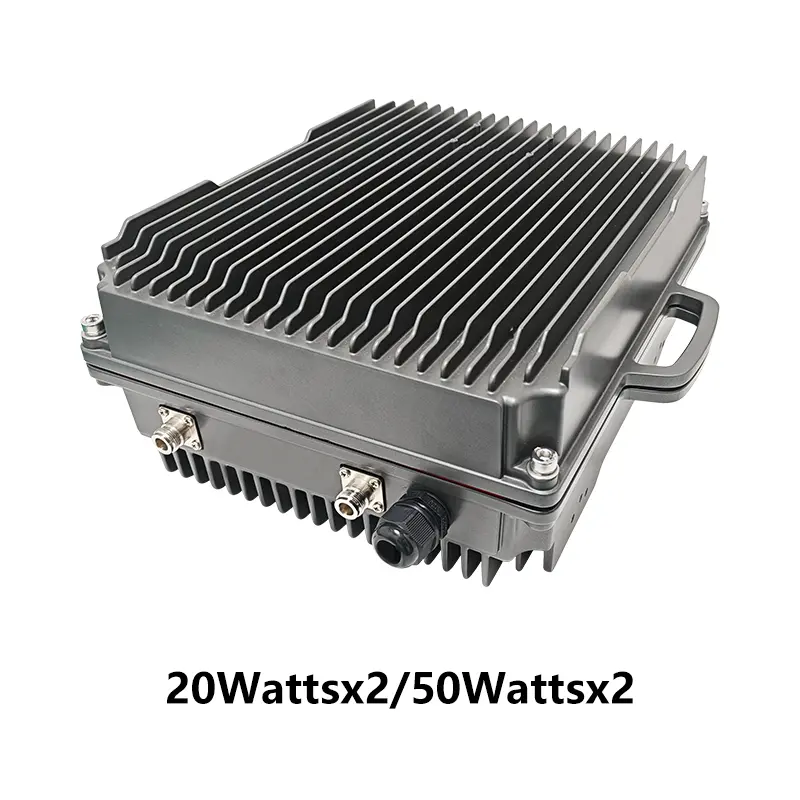

RF Output Power 10Watts×2 / 20Watts×2 / 50Watts×2 (1dBm adjustable)
Encryption DES, AES128/256 (Customizable options)
Environmental & Mechanical
Operation Temperature -40℃ to +80℃
Protection Level IP66 (IP67/IP68 Customizable)
Size/Weight 31.6x29.2x11.0cm (4.35kg) / 38.5x28.5x17.9cm (11.7kg)
Installation Clamp Fixation
Power & Interface
Supply Voltage 18-32V DC or 28-32V DC (depending on power model)
Basic Interface 2xN RF, 1-2xRJ45 Ethernet, RS232, Wi-Fi AP, DC input, BD/GPS, Bluetooth
Anti-Jamming FHSS, Full band intelligent frequency selecting, Spectrum awareness
📸 Product Visuals

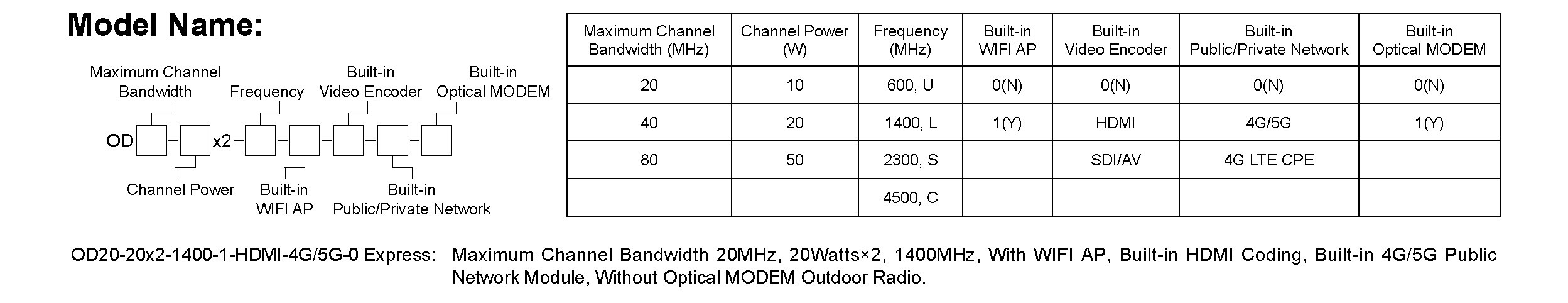

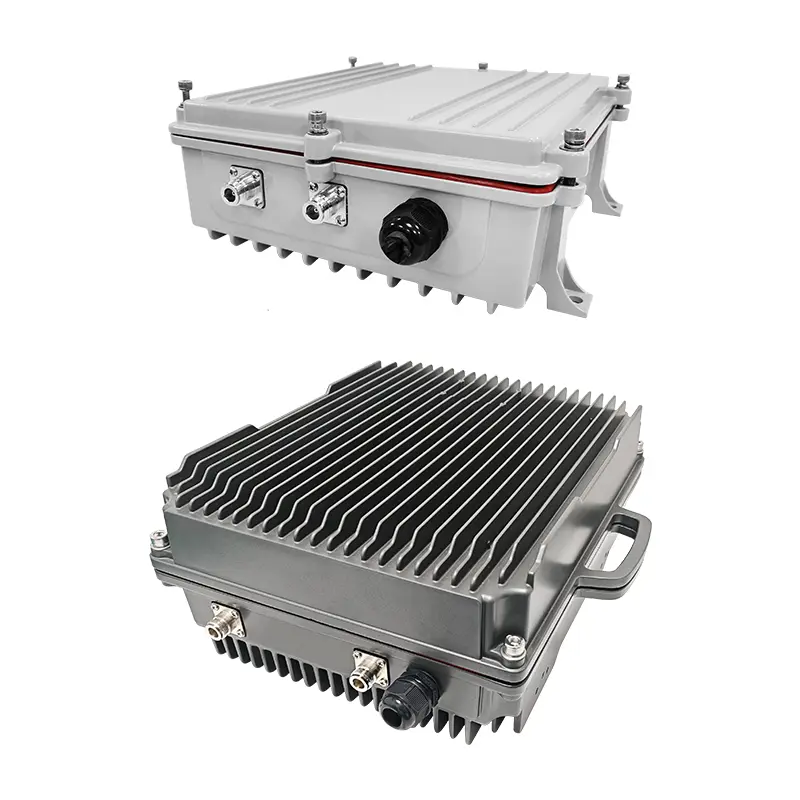

Outdoor Radio Unit

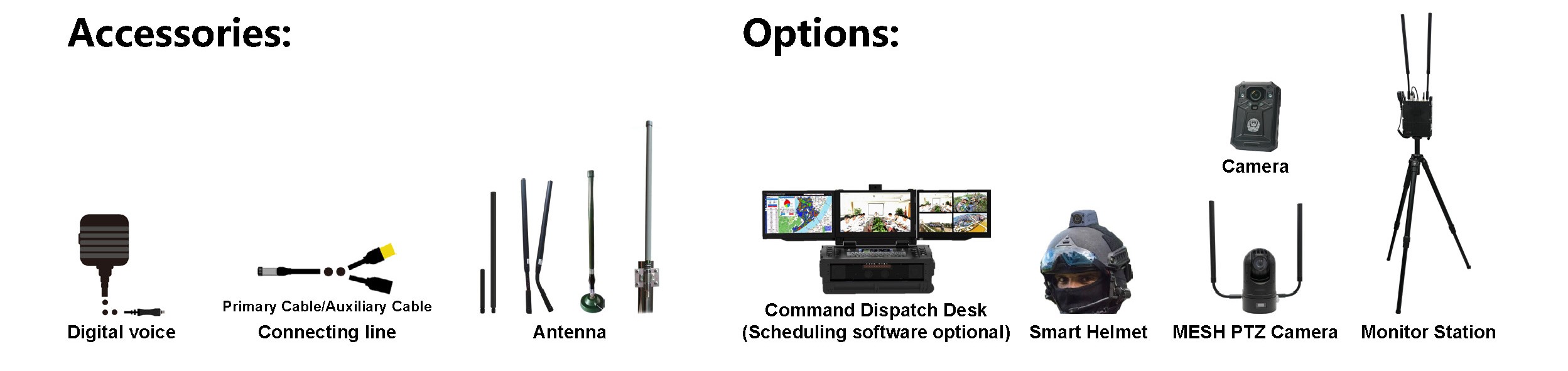

Vehicular Components
❓ Frequently Asked Questions
What is the advantage of the self-healing MESH network?
The MESH network is self-forming and self-healing, meaning it automatically reconfigures the best data path if a node moves or fails, ensuring uninterrupted high-speed communication in dynamic environments.
How does the device perform in non-line-of-sight (NLOS) conditions?
Using TD-COFDM modulation and MIMO technology, the system provides effective connections through urban obstacles and dense jungle foliage where traditional radios might fail.
Is the data transmission secure?
Yes, the system supports up to 256-bit AES encryption, ensuring that all data transmitted over the air is protected against unauthorized access.
What speeds can the device handle during movement?
The system is designed for extreme mobility, supporting mobile communication at speeds up to Mach 6 (approx. 7200 km/h) with automatic carrier tracking.
Can this unit be used in extreme weather?
Absolutely. It features an industrial-grade operating temperature range of -40℃ to +80℃ and holds an IP66 protection rating against dust and water.
How many nodes can a single Mesh network support?
A single system can support 256 nodes or more, with data multi-hop capabilities exceeding 15 hops while maintaining signal integrity.
