With the development of UAV Technology, the requirement of high bandwidth microwave data link is also improved, it has been unable to meet the requirements of long-distance communications by improving ground or airborne transmitter power or increase receiver sensitivity, but we found the way that improve the receiving and transmitting gain of ground control antenna is effective, and it won’t increase the weight and size of airborne communication equipment.
Directional communication antenna is widely used in the measurement and control of medium and long-range UAV, becauseit has high gain in beam angle range. Antenna by directional radiation and receiving signal to make the energy in the useful range, reduced energy dissipation, improve the transmission gain. But it is precisely because of the characteristics of directional transmitting and receiving signals, it is decided that the antenna must be equipped with a guidance tracking system, then it can be used in application of dynamic tracking communication for UAV.

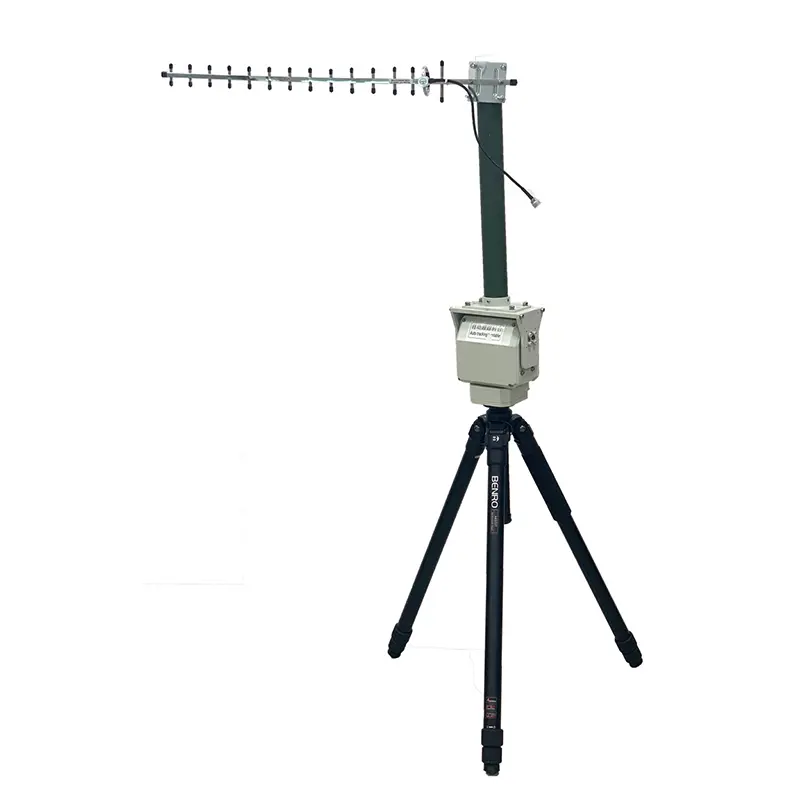

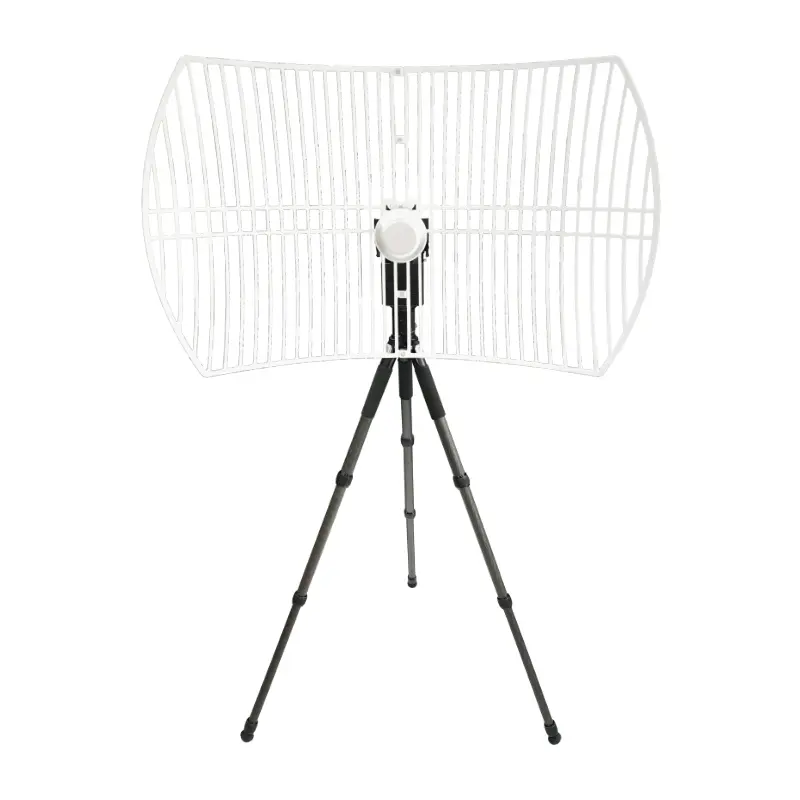

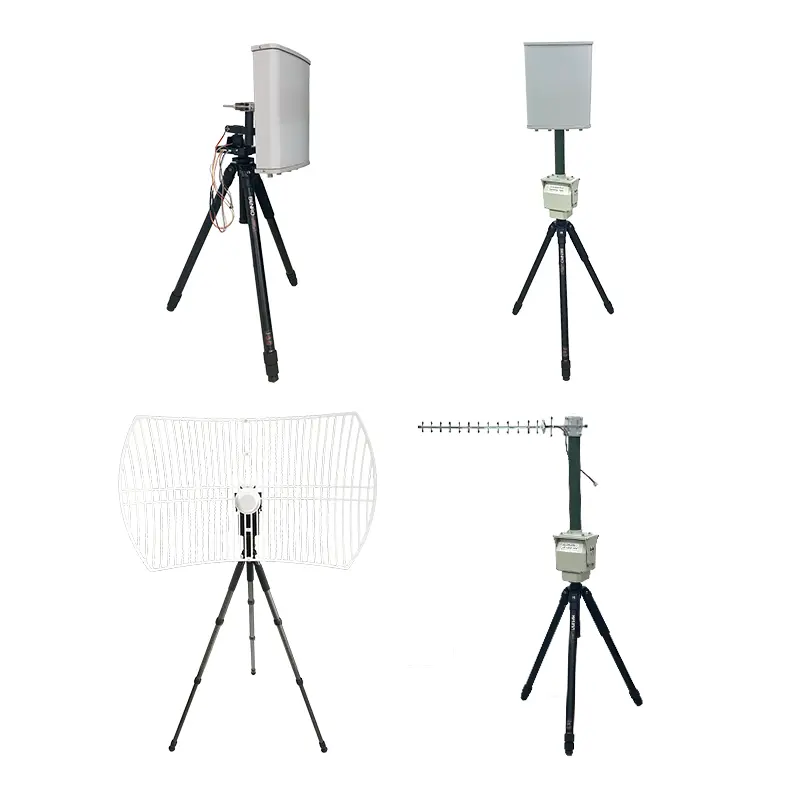

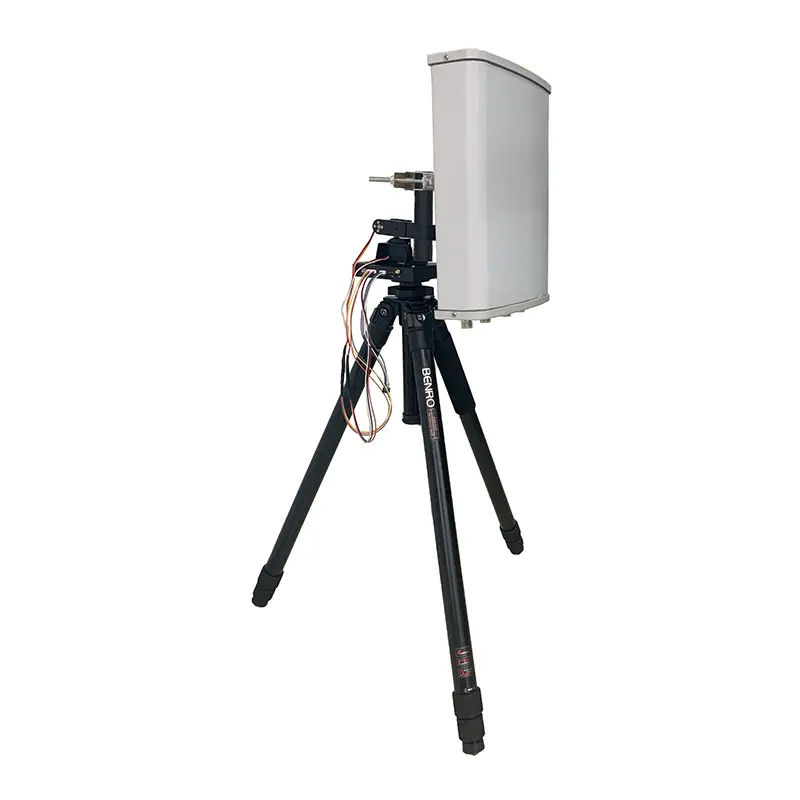

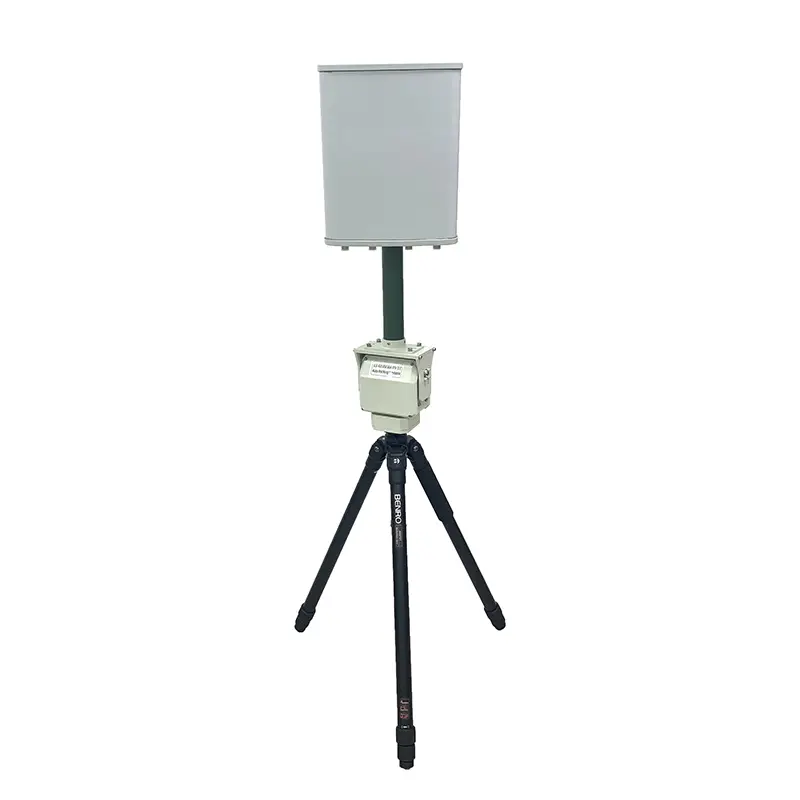

By using BD/GPS mode and brushless servo motor control, achieve the one-dimensional servo control of directional antenna, like spiral directional antenna, Yagi antenna, grid directional antenna and so on. It is more stable than single channel monopoles tracking system, digital stronger and low cost.
The turntable intercepts flight control information and uses the MAVLink protocol to identify and capture the aircraft's position, altitude, and other information, thereby enabling real-time tracking of the aircraft. The MAVLink protocol has been used or implemented by many flight controllers, ground control stations (GCSs), and trackers. However, in practice, many devices use MAVLink in their own ways. One reason for this is that MAVLink is not clear enough in defining how to send some important data (such as data between the aircraft and the GCS). There are many different MAVLink messages that can be used to send information such as BD/GPS coordinates and altitude.
