| Operating Frequency | 902-928MHz |
| Spread Spectrum Mode | Frequency Hopping |
| Forward Error Correction | Hamming, BCH, Golay, Reed-Solomon |
| Error Detection | 32 bits of CRC, ARQ |
| Encryption | Optional (see AES option) |
| Communication Range | 60km, 1W, working in the open and expand without obstruction |
| Sensitivity (@ 10-4) |
-110 dBm @ 115.2 kbps -108 dBm @ 172.8 kbps -107 dBm @ 230.4 kbps |
| Output Power | 100mW - 1W/10W |
| Serial Interface | 3.3V CMOS |
| Serial Port Baud Rate | Up to 230.4kbps asynchronous |
| Air Rate | 115 - 276kbps |

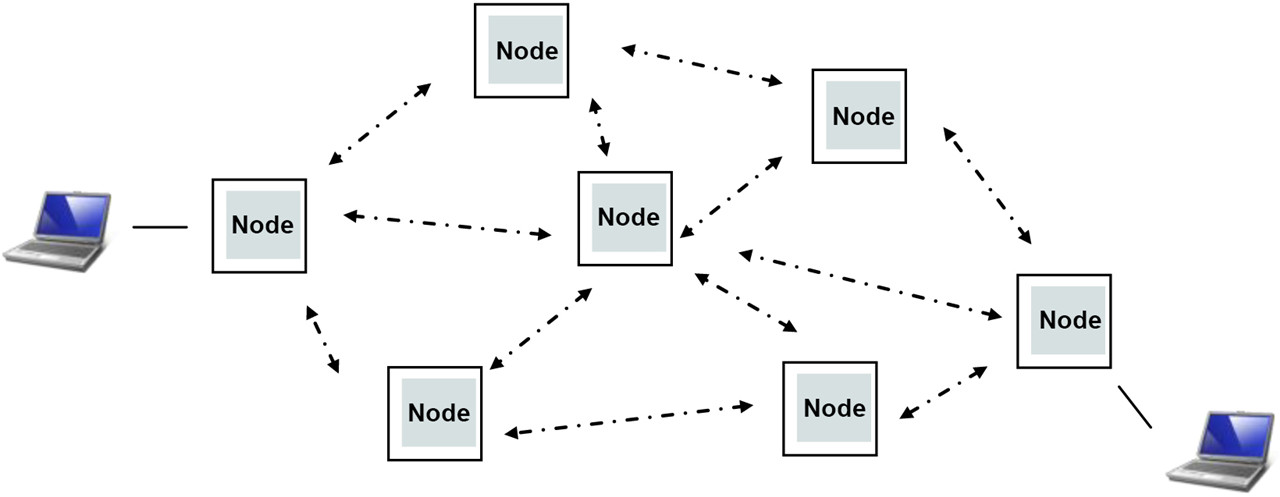

| Operating Mode | Mesh, Auto Routing, Store and Forward, Self-Healing, Packet Routing Modes |
| Signal Interface | RxD1, TxD1, RTS, CTS DCD, DSR, DTR, RxD2, TxD2, RSSI LEDs, Tx/Rx LEDs, Reset, Config, Wake-up, RS mode, 4 Digital Inputs/Outputs, 1 Analog Input, 1 Analog Output |
| Out-Of-Band Radiation |
+/- 1MHz > 55 dBc +/- 2.5MHz > 60 dBc +/- 5MHz > 65 dBc >930MHz > 70 dBc <890MHz > 70 dBc |
| Remote Diagnosis | Battery Voltage, Temperature, RSSI, Packet Statistics |
| Operating Voltage | 3.3VDC Nominal (+/-0.3V) |
| Power Consumption (3.3V +/-0.3V @ 1W) |
Sleep < 1mA Idle 3.5mA Rx: 45mA to 1400mA Tx: 1000mA to 1400mA |
| Connectors |
Antenna: UFL Data: 80 Pin SMT |
| Temperature Range | -55°C to +85°C |

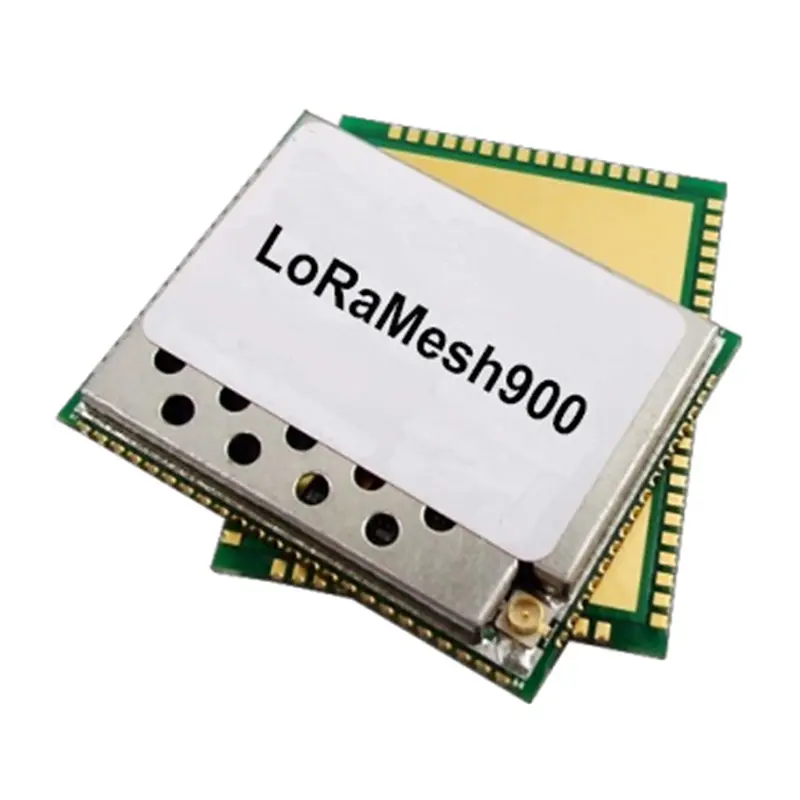

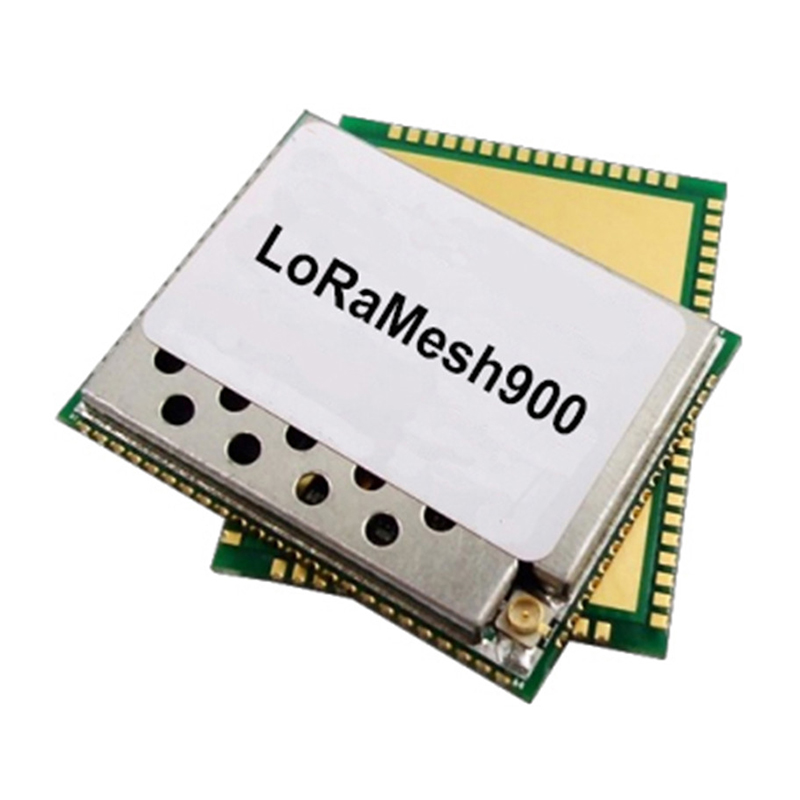

| Weight | Approx. 5 grams |
| Dimensions |
Approx. 1.05" x 1.3" x 0.13" (26.5mm x 33mm x 3.5mm) |
| Certifications / License | FCC Part 15.247, IC RSS210 |
