| Parameter | Specification Details |
|---|---|
| Frequency Options | 1625 to 1725 MHz, 1780 to 1850 MHz, 2020 to 2110 MHz, 2200 to 2300 MHz, 2300 to 2390 MHz, 2400 to 2500 MHz (Software Selectable) |
| Error Detection | 32 bits of CRC, ARQ |
| Encryption | 128-bit AES (Optional 256-bit AES) |
| Interface Ports |
• Serial Data/Console: RS232 TTL level (300bps to 921kbps) • Ethernet: Dual 10/100Base IEEE802.3 (LAN/WAN) • USB: USB 2.0 |
| Firewall | Port Forwarding, Access Control, IP/MAC Filtering Lists |
| Operating Modes | Point-to-point, Point-to-multipoint, Relay, MESH |
| Diagnostics | Remote Diagnostics, Ping, Traceroute, ARP table, DHCP active leases, IPerf, RSSI |
| Management | Local Serial Port Console, Telnet, WebUI, SNMP, FTP/TFTP Upgrade, CLI (Command Line Interface) |
| Jamming Rejection | Excellent strong signal jamming and interference rejection characteristics |
| Input Voltage |
• OEM: Digital Voltage = 3.3V, RF Voltage = 5V • Enclosed: 7 - 30VDC |
| Connectors |

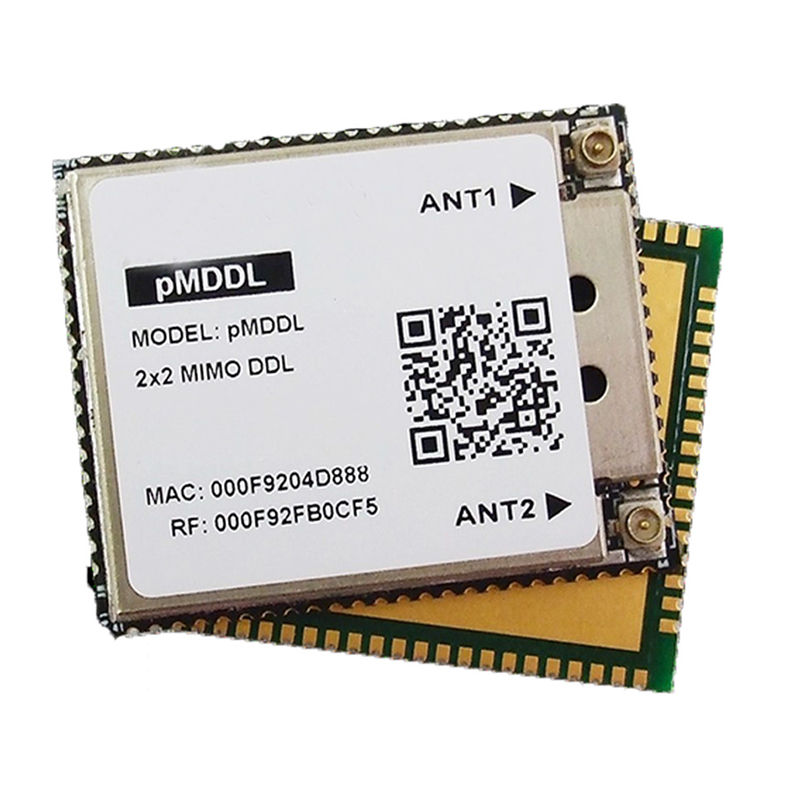

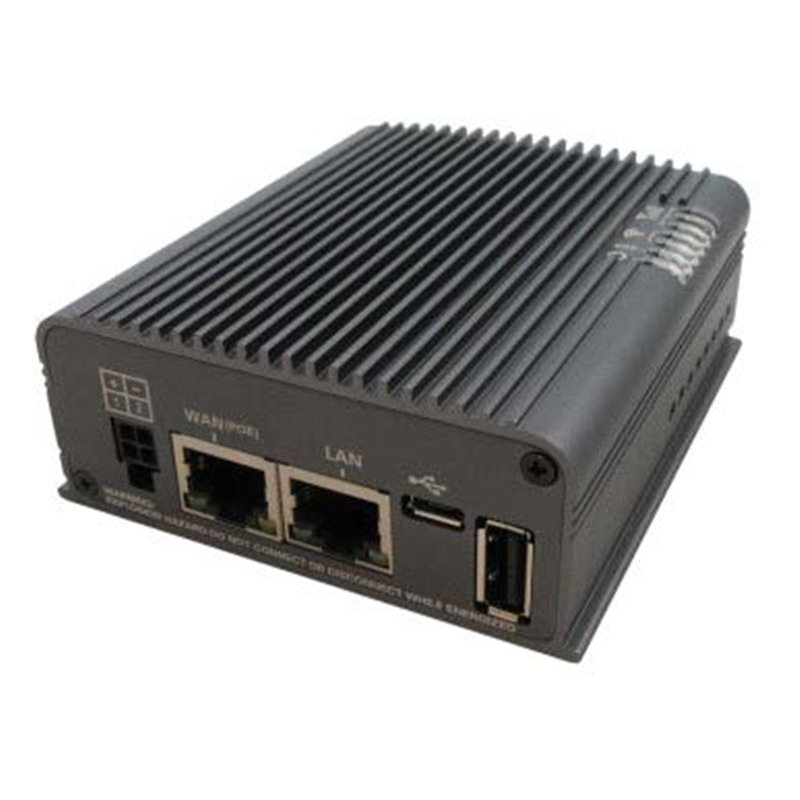

• OEM: Antenna: UFL x2 (ANT1, ANT2) | Data: 116 Pin SMT • Enclosed: Antenna: SMA x2 (ANT1, ANT2) | Data: RJ-45 x2 (Ethernet), Female DB9 (Serial), USB Type A, Micro-AB USB (Console), 4-PIN Interlock (Vin) |
| Environmental |
• Temperature: -40°F to 185°F (-40°C to +85°C) • Humidity: 5 - 95%, non-condensing |
| Weight | OEM: 15g | Enclosed: 275g |
| Dimensions | OEM: 26.5mm x 51mm x 5.6mm | Enclosed: 81mm x 88mm x 35mm |
| Order Options |

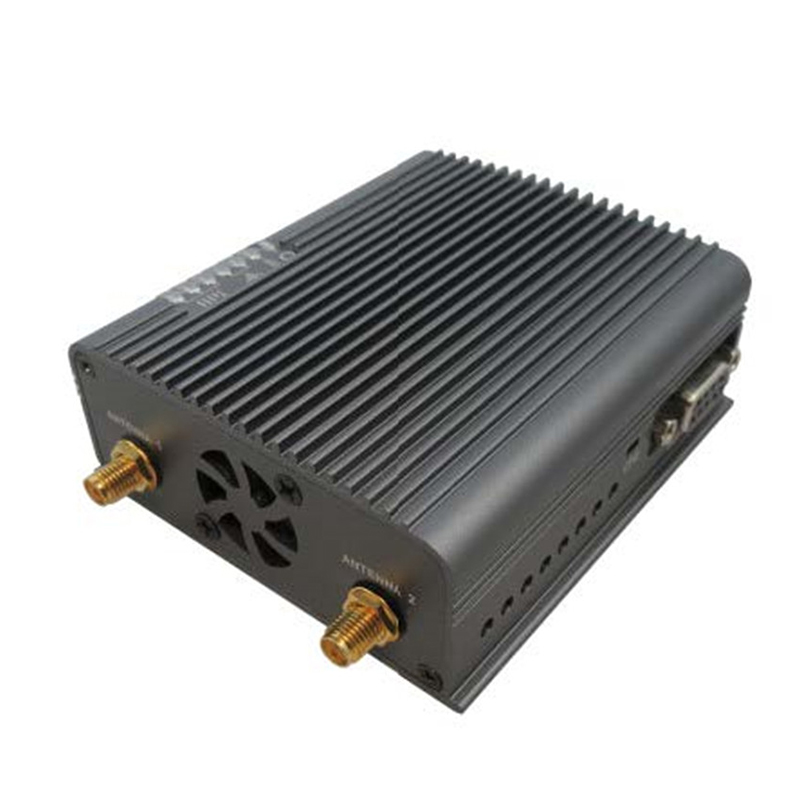

• pMDDL1624: 2X2 MIMO Hexa-Band OEM Data Link • pMDDL1624-ENC: 2X2 MIMO Hexa-Band Enclosed Data Link |
| Modulation | IPerf Throughput (Mbps) | Optimal MRC Sensitivity (dBm) | Total Tx Power (dBm) ±1dB |
|---|---|---|---|
| 8MHz Channel Bandwidth (2X2 MIMO ON) | |||
| BPSK_1/2 | 3.1 | -99.5 | 30dBm |
| QPSK_1/2 | 6.0 | -98 | 30dBm |
| QPSK_3/4 | 8.4 | -96 | 30dBm |
| 16QAM_1/2 | 10.7 | -92 | 30dBm |
| 16QAM_3/4 | 14.8 | -90 | 30dBm |
| 64QAM_2/3 | 18.1 | -85 | 30dBm |
| 64QAM_3/4 | 19.0 | -83.5 | 30dBm |
| 64QAM_5/6 | 21.0 | -81 | 30dBm |
| 4MHz Channel Bandwidth (2X2 MIMO ON) | |||
| BPSK_1/2 | 1.57 | -102.5 | 30dBm |
| QPSK_1/2 | 3.0 | -101 | 30dBm |
| QPSK_3/4 | 4.3 | -99 | 30dBm |
| 16QAM_1/2 | 5.4 | -95.5 | 30dBm |
| 16QAM_3/4 | 7.4 | -93 | 30dBm |
| 64QAM_2/3 | 7.8 | -88 | 30dBm |
| 64QAM_3/4 | 8.0 | -86 | 30dBm |
| 64QAM_5/6 | 10.0 | -83.5 | 30dBm |
| 8MHz Channel Bandwidth (2X2 MIMO OFF) | |||
| BPSK_1/2 | 3.1 | -96.5 | 30dBm |
| QPSK_1/2 | 6.0 | -95 | 30dBm |
| QPSK_3/4 | 8.4 | -93 | 30dBm |
| 16QAM_1/2 | 10.7 | -89 | 30dBm |
| 16QAM_3/4 | 14.8 | -87 | 30dBm |
| 64QAM_2/3 | 18.1 | -82 | 28dBm |
| 64QAM_3/4 | 19.0 | -80.5 | 28dBm |
| 64QAM_5/6 | 21.0 | -78 | 27dBm |
| 4MHz Channel Bandwidth (2X2 MIMO OFF) | |||
| BPSK_1/2 | 1.57 | -99.5 | 30dBm |
| QPSK_1/2 | 3.0 | -98 | 30dBm |
| QPSK_3/4 | 4.3 | -96 | 30dBm |
| 16QAM_1/2 | 5.4 | -92.5 | 30dBm |
| 16QAM_3/4 | 7.4 | -90 | 30dBm |
| 64QAM_2/3 | 7.8 | -85 | 28dBm |
| 64QAM_3/4 | 8.0 | -83 | 28dBm |
| 64QAM_5/6 | 10.0 | -80.5 | 27dBm |
