High-Quality iNET Series of Network Radio Factory, Factories

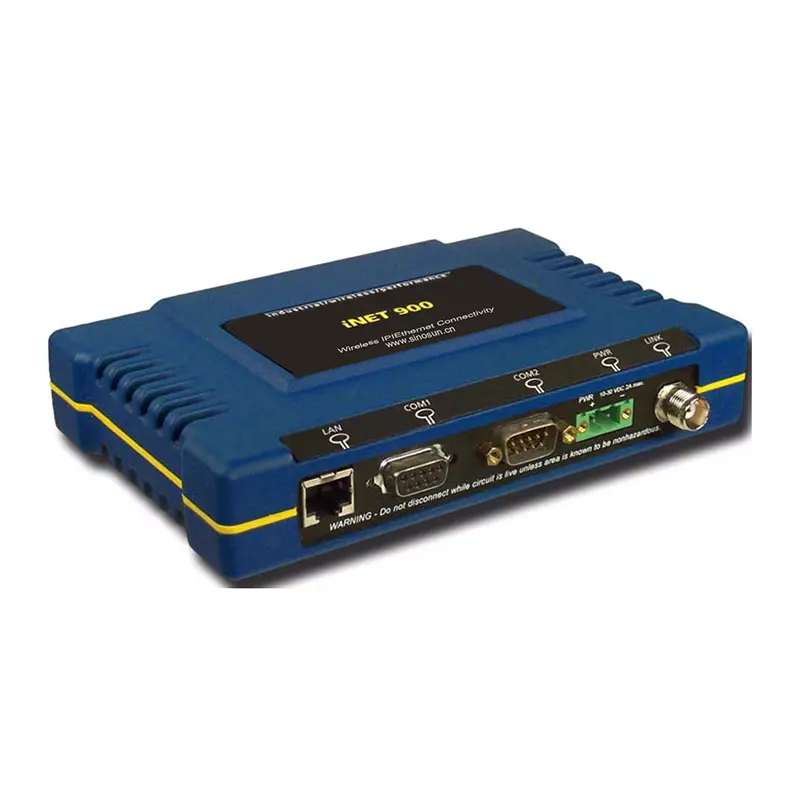

The iNET300/iNET900 is a long-range, high-speed, industrial, wireless IP/Ethernet solution. It allows customers to bring business information over Ethernet or a serial gateway and onto IP based networks. This includes mission-critical. Revenue generating data from fixed assets such as oil and gas wells, compressor stations, pipelines. fluid storage tanks and utility meters. It also enables mobile network access for vehicle-based operation.

The iNET300/iNET900 uses advanced 340/900MHz FHSS technology for license-free operation in the 336-344/902-928MHz ISM band. It is capable of up to 90mile range (line-of-sight)^{2 and}Â up to 512Kbps/1Mbps over-the-air data rate communications. This product is available for use in Class 1, Division 2, Groups A, B, C&D hazardous locations.¹Â

Send Inquiry

Product Description

Key Product Features

Performance & Range

Long range: Up to 90 miles.
High speed: Up to 512Kbps (iNET300) / 1Mbps (iNET900).
License-free operation for immediate deployment.
Plug and play connectivity with minimal configuration.

Security & Reliability

Multiple layers of cyber-security.
AES-128 encryption with automatic key rotation.
RADIUS authentication.
Industrial grade performance (UL Class 1 Div 2) for extreme environments.

Flexibility

VLAN capability (802.1Q) for segregated data flows.

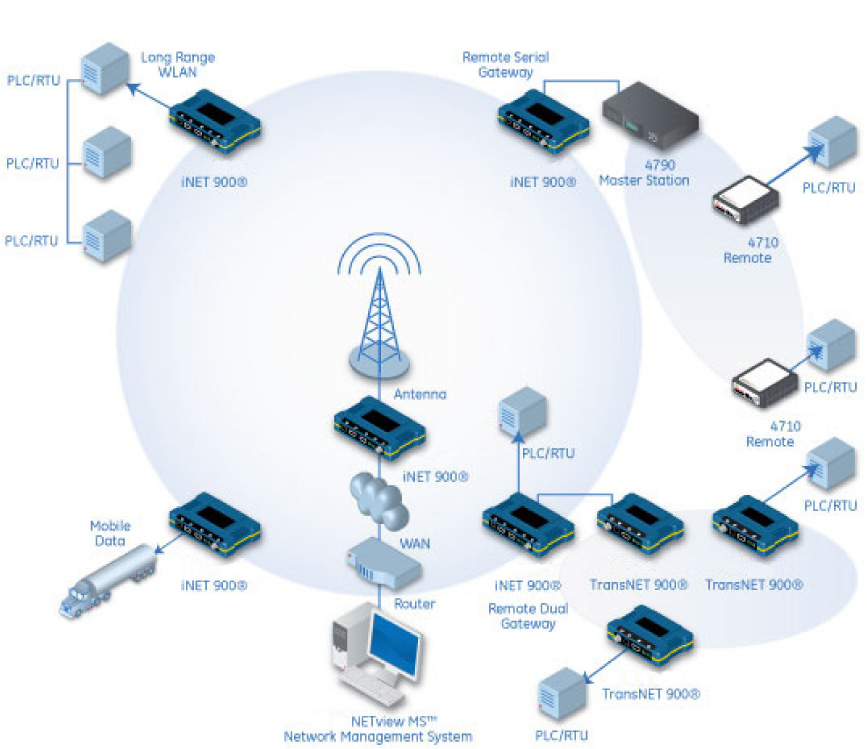

Gateway for serial/legacy networks to IP.

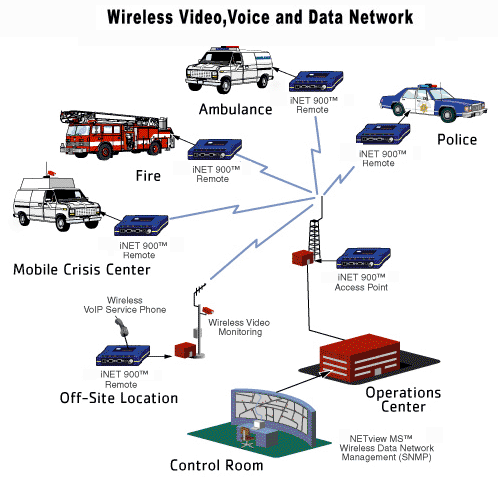

Support for Video, Voice-over-IP, and Mobile network access.
Ethernet and serial interfaces allow easy migration.

Why Use An iNET Wireless Networking Solution?

Longest Range: Industrial-grade product offering the lowest cost of ownership.
Secure Operation: Multiple layers of protection, including physical layer security, RADIUS authentication, and AES-128 encryption.
Reliability: Designed for low failure rates, reduced maintenance, and mission-critical availability with protected access point configurations.
Flexibility: Supports multiple users and applications via multiple protocols simultaneously on the same unit.
Future Proof: Adheres to open standards, allowing communication between new and old technologies.
Network Management: Compatible with standard off-the-shelf SNMP management systems.

Technical Specifications

Category	Details
Data Rate	256Kbps-1Mbps (user configurable); 1,200-115.2 bps serial ports
Frequency Band	336-344 MHz (iNET300) / 902-928 MHz (iNET900)
Spreading Mode	DTS/FHSS
Physical Interfaces	Ethernet (10BaseT, RJ-45), Serial (RS-232/485), TNC Antenna Connector
Protocols	TCP/IP (DHCP, UDP, TCP, ARP), Serial (PPP, Modbus, DNP.3)
Cyber Security	AES-128, 802.1x, RADIUS, SSL, SSH, HTTPS
Environmental	-40°C to +70°C (-40°F to +158°F); 95% humidity non-condensing

Frequently Asked Questions

1. What is the maximum range of the iNET wireless solution?

The iNET system can achieve a maximum fixed range of up to 90 miles, depending on the specific model and configuration used.

2. Does the iNET support legacy serial devices?

Yes, the iNET includes serial interfaces that allow for the migration of existing serial devices to IP networks, supporting protocols like Modbus and DNP.3.

3. What kind of security measures are included?

The solution features multiple layers of security, including AES-128 encryption with automatic key rotation, RADIUS authentication, and VLAN segregation.

4. Can the iNET be used in extreme weather conditions?

Yes, the iNET is built with industrial-grade performance, featuring an extended temperature range of -40°C to +70°C, making it suitable for extreme environments.

5. Is the iNET management system compatible with standard software?

Yes, it is fully compatible with standard off-the-shelf SNMP management systems, as well as NETview MS.
